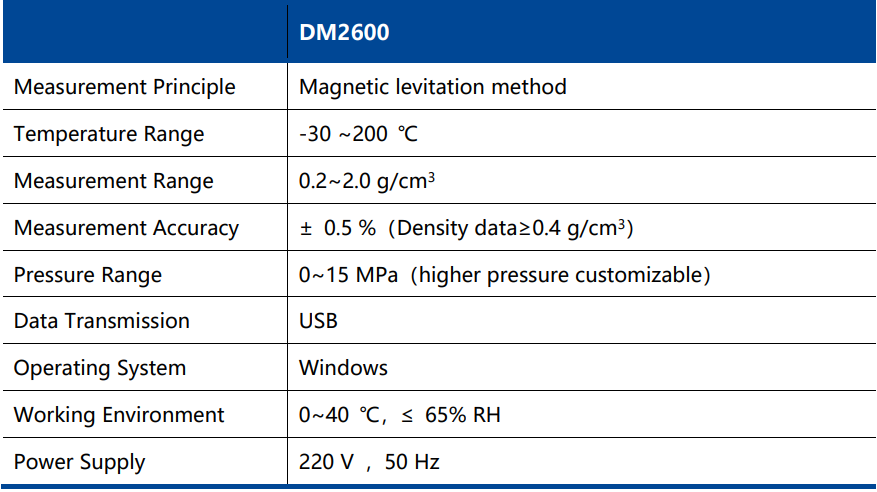

Description Technical Parameter Product Application

Description

The DM2600 High-Temperature Densimeter, developed using buoyancy principles and magnetic levitation technology, offers high measurement precision, a wide temperature range, extensive pressure capabilities, and short measurement time. It isolates measurement components from the sample fluid with magnetic coupling, suitable for temperatures up to 200°C and down to -30°C, with a pressure range from vacuum to 15 MPa (higher pressures on request). It is ideal for density testing of various fluids including electronic fluorinated liquids, refrigerants, lubricants, aviation fuel, and chemical reagents, across liquid, vapor, and supercritical phases.

Key Features

l Accuracy: < ±0.5 % across the entire temperature range

l Temperature span: -30 °C to 200 °C (customizable temperature ranges available)

l Stability: ±0.05 °C temperature control

l Pressure range: 0~15 MPa (scalable)

l Automated Testing: temperature/pressure control, data logging and analysis

The DM2600 High-Temperature Liquid Densimeter measures temperatures from -30 to 200°C with ±0.05°C stability, ensuring reliable results across the range. Its automated features minimize human error and enhance efficiency.
