It is suitable for measuring the saturated vapor pressure of various fluids within the temperature range of -30~100℃, with a maximum pressure of up to 5MPa and optional measurement ranges.

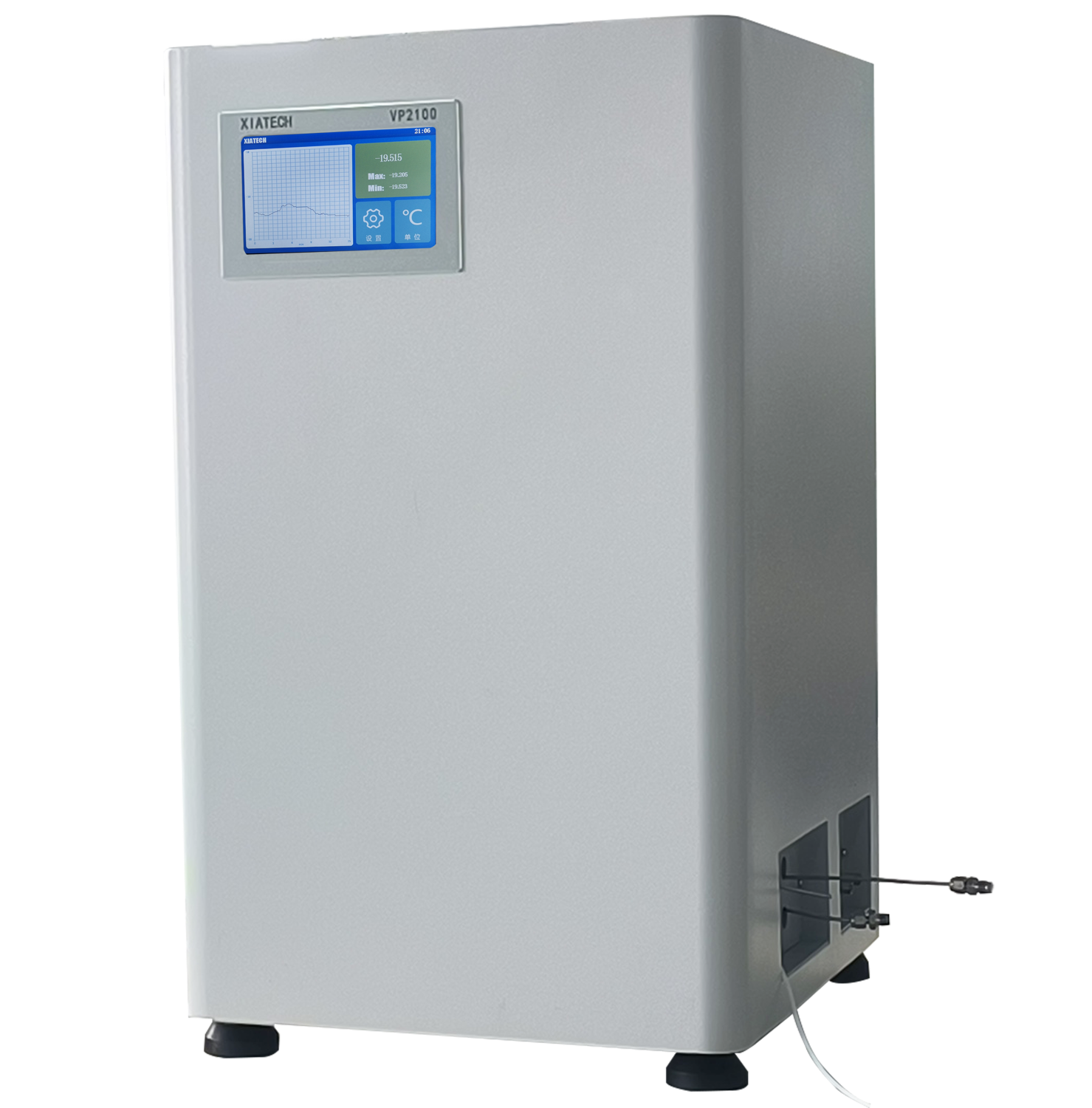

The VP2100 Low-Temperature Vapor Pressure Tester is a fluid saturated vapor pressure testing device launched by XIATECH specifically for measurement in medium and low-temperature environments. It can achieve experimental measurements within a pressure range of 5MPa under medium and low-temperature (-30~100℃) environmental control. The device can be optionally equipped with high-precision pressure sensors of different ranges (with a measurement accuracy of less than 0.1% FS). Users can select a pressure sensor with an appropriate range according to the saturated vapor pressure range of the sample to be tested, ensuring accurate and reliable test results. The device retains the advantages of the VP2000 series of fully automatic vapor pressure testers and also features program-controlled temperature and automatic testing functions. Users only need to set all target temperature points before testing, and the system will automatically start temperature control and gradually complete measurements at the corresponding temperature points. With high testing efficiency, it is suitable for high-precision saturated vapor pressure measurement of various fluids such as chemical reagents, electronic fluorinated liquids, electrolytes, lubricating oils, aviation kerosene, and fine chemicals.

Key Features

l Low-Temperature Measurement: Minimum temperature of -30℃, with support for customization of lower temperatures.

l Wide Pressure Measurement Range: Pressure range of 0~5 MPa with optional ranges, and support for customization of higher pressures.

l Accurate Pressure Measurement: Adopts high-precision pressure sensors with a measurement accuracy of less than 0.1% FS (higher accuracy can be customized).

l Fully Automatic Control: Realizes automatic sample injection, temperature control, temperature measurement, pressure measurement, and automatic data processing, ensuring high testing efficiency.

l Safety Overpressure Protection: Automatic pressure relief function to prevent equipment damage caused by overpressure.
