HomeProduct CenterThermal Conductivity > Solid Thermal Conductivity Meter > TC3000S Single-Side Thermal Conductivity Meter

Return

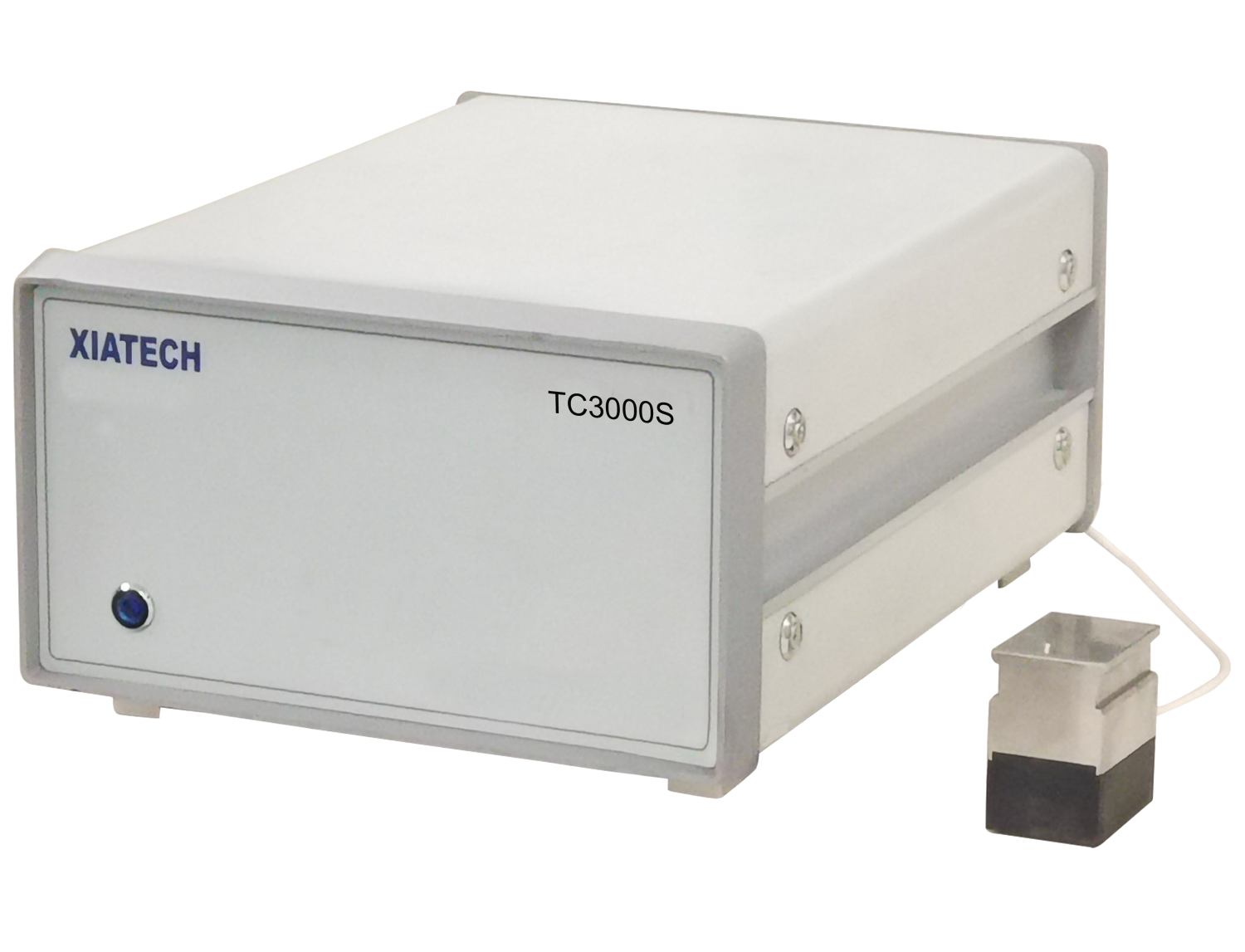

TC3000S Single-Side Thermal Conductivity Meter

Designed specifically for on-site measurements in manufacturing facilities, it eliminates the need for special sample preparation, with the sensor allowing direct placement on the sample for testing.

Product features:: Single-sample measurement: A single sample suffices for completing the test; Non-destructive testing: Does not damage the sample's composition; Portable design: Compact in size for easy carry

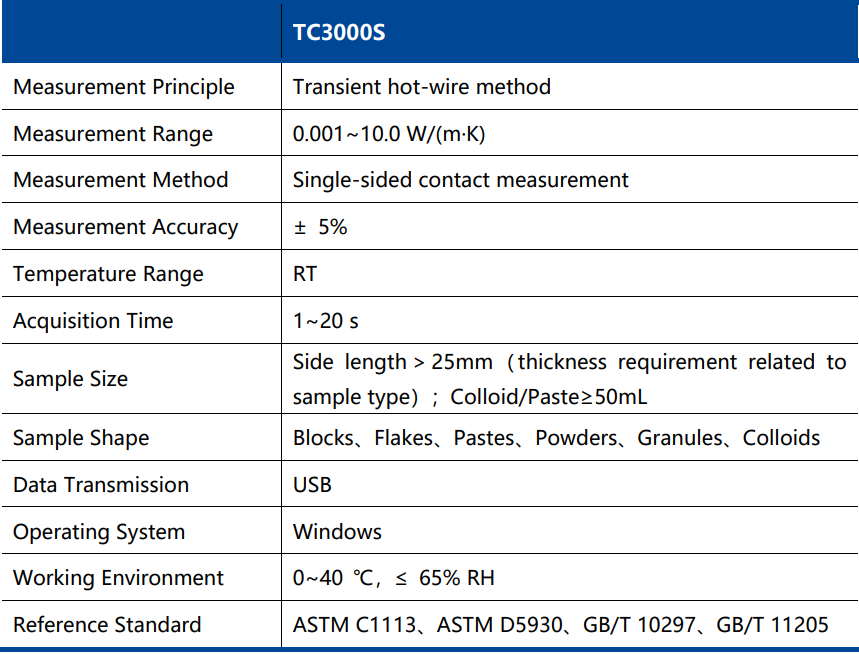

Description Technical Parameter Product Application

Description

The TC 3000S Single-side Thermal Conductivity Meter is a practical thermal conductivity meter specifically developed for on-site measurements in manufacturing enterprises. It enables non-destructive testing without altering the sample composition and eliminates the need for special sample preparation. The sensor can be directly attached to the sample surface, and its built-in pressure application ensures good contact with the sample. It is particularly suitable for in-situ measurement scenarios where sampling is inconvenient or samples are directly formed.

Featuring rapid measurement, simple operation, and low sample consumption, the instrument is applicable to incoming material inspection. With its lightweight and portable design, high automation level, and precise measurement performance, it is suitable not only for on-site measurement in production workshops but also for laboratory use, achieving diversified application scenarios.

Key Features

l Single-sample measurement: A single piece of sample is sufficient to complete the test.

l Fast measurement speed: Test results can be obtained within a few minutes.

l Low sample requirements: No specific shape or size is needed (with a side length of more than 25mm).

l Convenient portability: Compact in size and light in weight, suitable for experimental sites requiring in-situ measurement.

l Non-destructive testing: Rapid measurement without damaging the sample composition, especially suitable for testing materials such as tire rubber.

l Simple operation: The sensor can be directly placed on the sample surface, and the testing software enables automatic data collection, reducing requirements for operators.
