HomeProduct CenterThermal Conductivity > Solid Thermal Conductivity Meter > TC3000 Series Universal Thermal Conductivity Meter

Return

TC3000 Series Universal Thermal Conductivity Meter

It is suitable for block, sheet, powder, granule, paste and colloid samples, with no need to replace the probe, greatly reducing testing costs for users.

Product features:: Flexible sample requirements: No specific shape or size required; Direct measurement method: Obtains thermal conductivity directly; Highly automated: Equipped with automatic measurement function

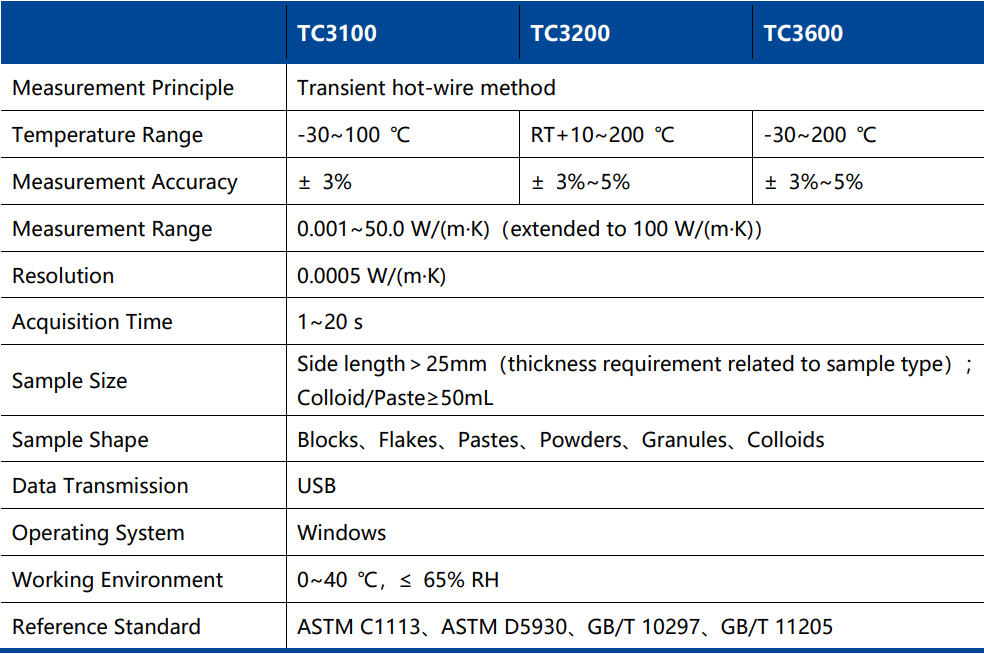

Description Technical Parameter Product Application

Description

The TC 3000 Series Universal Thermal Conductivity Meter is widely applicable for measuring thermal conductivity of various materials, including thermal insulation materials, thermal conductive materials, phase change materials, composite materials, soil and rocks, biomass materials, cast iron alloys, etc. Whether the material is in block, sheet, powder, paste, or colloid form, a single thermal conductivity meter can quickly and reliably obtain its thermal conductivity, significantly saving testing costs for users. It offers multiple models for low-temperature, medium-low temperature, and high-temperature applications, catering to experimental needs across diverse fields such as thermal management, bridge subgrades, underground new energy, geotechnics, clothing and textiles, food storage, petrochemicals, building insulation, and basic education.

Key Features

l High measurement accuracy: Over 20 years of technical development ensures high test accuracy.

l Fast testing speed: Measurement results can be obtained within minutes (under temperature-stabilized conditions).

l Minimal sample requirements: No specific shape or size is needed (with a side length exceeding 25mm).

l Easy operation: The probe is flexible and simple to use, equipped with a USB interface, and the testing software enables automatic data collection, reducing requirements for operators.

l Versatile applications: Suitable for laboratory testing, on-site testing, finished product testing, and real-time testing.
