HomeProduct CenterThermal Conductivity > Liquid Thermal Conductivity Meter > TC3400L Low-Temperature Thermal Conductivity Meter

Return

TC3400L Low-Temperature Thermal Conductivity Meter

Utilizing the transient hot-wire technique, it measures the thermal conductivity of both liquids and gases within the range of -160℃ to room temperature, with pressure resistance up to 15 MPa.

Product features:: Low-temperature measurement capability: down to -160℃; Wide measurement range: suitable for measuring liquids and gases; Highly automated: sampling/ control/acquisition/ sample discharg

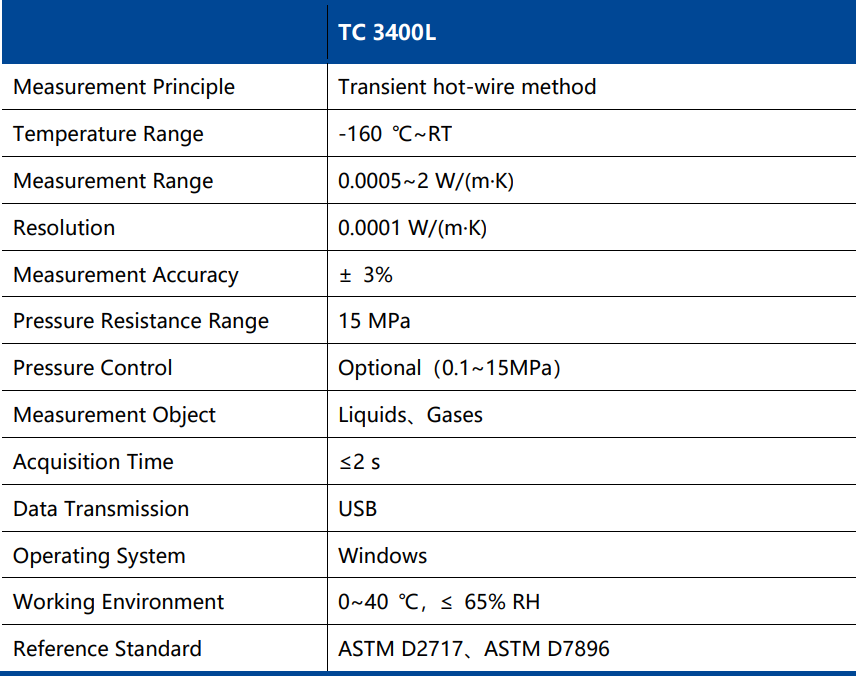

Description Technical Parameter Product Application

Description

The TC3400L Low-Temperature Fluid Thermal Conductivity Meter is a high-precision instrument specially developed for measuring low-temperature thermal conductivity of fluids. Adopting the transient hot wire technique, it can measure the thermal conductivity of fluids within a temperature range of -160℃ to room temperature with a pressure resistance up to 15MPa. It features fast testing speed, high accuracy, high automation, and simple operation. Its professional structural design ensures sufficient shock resistance and durability, requiring only a small sample volume (30 mL) to obtain accurate and reliable thermal conductivity data. It is suitable for measuring the thermal conductivity of fluids under different temperature and pressure conditions, such as lubricating oils, nanofluids, refrigerants, liquid fuels, fluorinated liquids, coolants, and gases.

Key Features

l Fluid-specific measurement: Uses the transient hot wire method, a reliable technique for testing fluid thermal conductivity.

l Fast measurement: Acquisition time ≤ 2s, effectively avoiding convection to ensure measurement accuracy.

l Wide temperature range: Capable of measuring thermal conductivity within -160℃ to room temperature.

l Broad pressure resistance: Withstands up to 15MPa, enabling thermal conductivity-pressure data acquisition.

l Small sample volume: Only 30-40 mL required for reliable results.

l High automation: Automatic sample injection/discharge, temperature/pressure control and measurement, and automatic data processing.

l Versatile application: Suitable for measuring thermal conductivity of fluids under varying temperature/pressure conditions, including lubricating oils, nanofluids, refrigerants, liquid fuels, fluorinated liquids, coolants, and gases.
