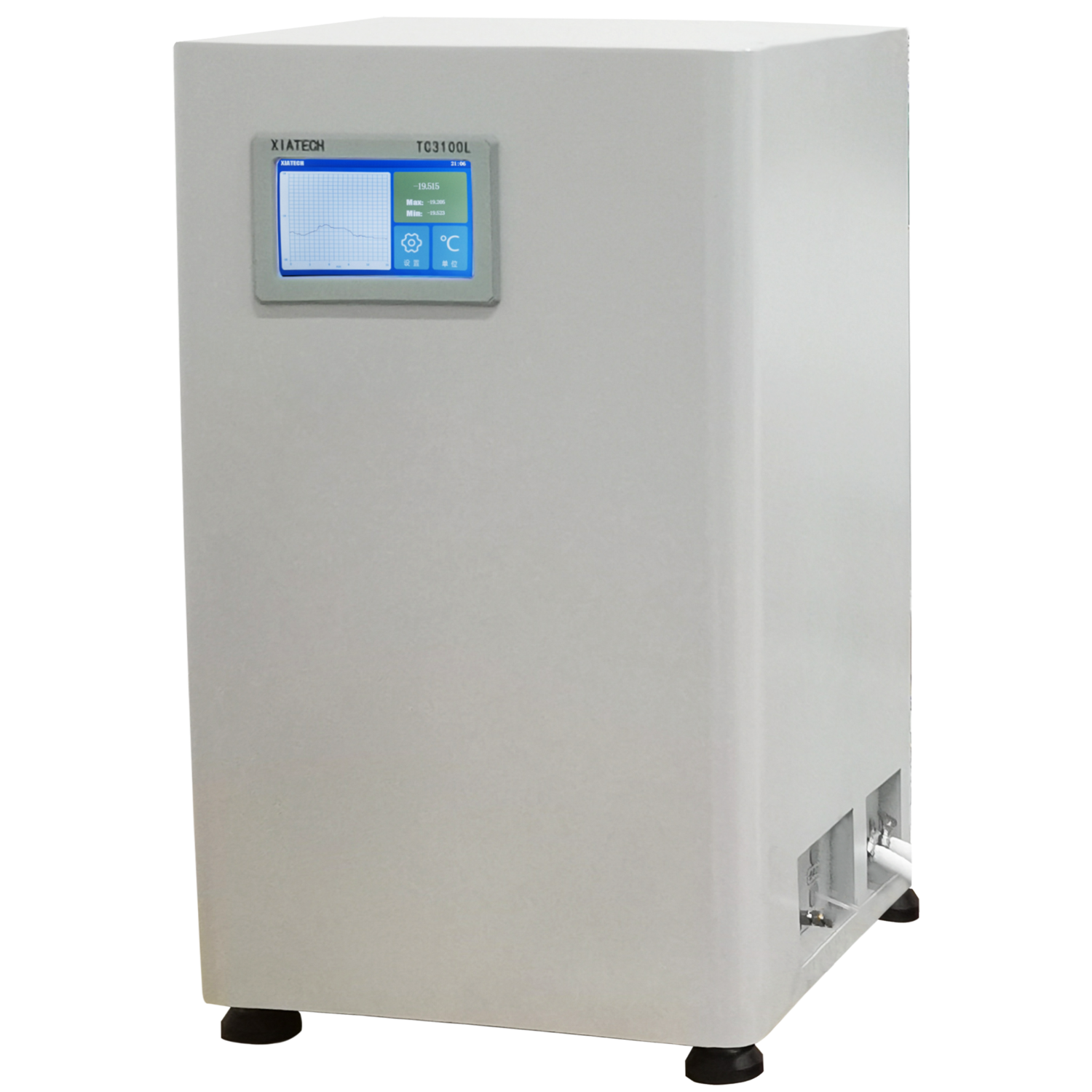

TC3100L Low-Temperature Thermal Conductivity Meter

A high-precision instrument specifically developed for measuring liquid thermal conductivity, with a temperature range of -30 to 100 ℃, pressure resistance up to 15 MPa, and automated operation.

Product features:: Fluid-specific measurement: Hot Wire Method; Rapid measurement: Data acquisition within 2 seconds; Highly automated: Sampling/ control/ acquisition/ sample discharg

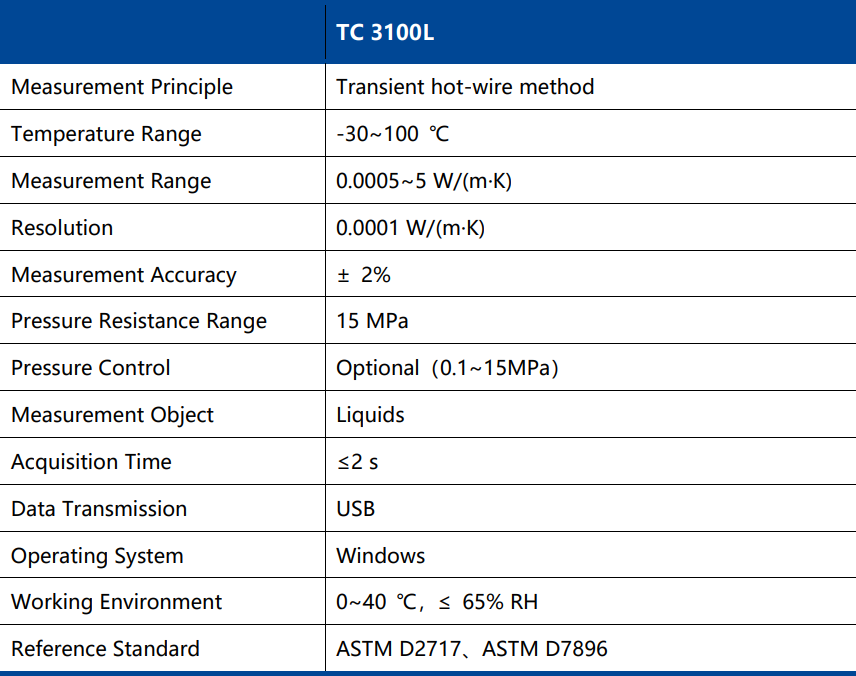

Description Technical Parameter Product Application

Description

The TC3100L Liquid Thermal Conductivity Meter is a high-precision instrument specifically developed for measuring liquid thermal conductivity. Utilizing the transient hot wire technique, it can determine the thermal conductivity of liquids within a temperature range of -30℃ to 100℃, with a pressure resistance up to 15MPa. The product features fast testing speed, high accuracy, high automation, and simple operation. Its specialized structural design ensures sufficient shock resistance and durability, while requiring only a small sample volume (30 mL) to obtain accurate and reliable thermal conductivity data. It is suitable for measuring the thermal conductivity of liquids under different temperature and pressure conditions, such as lubricating oils, nanofluids, refrigerants, liquid fuels, fluorinated liquids, and coolants.

Key Features

l Fluid-specific measurement: Adopting the transient hot wire method, a reliable technique for testing liquid thermal conductivity.

l Rapid measurement: Acquisition time ≤ 2s, effectively avoiding convection to ensure measurement accuracy.

l Wide temperature range: Capable of measuring thermal conductivity within -30℃ to 100℃.

l Broad pressure resistance: Withstands up to 15MPa, enabling thermal conductivity-pressure data acquisition.

l Small sample volume: Only 30-40 mL required for reliable results.

l High automation: Automatic sample injection/discharge, temperature/pressure control and measurement, and automatic data processing.

l Wide application: Suitable for measuring thermal conductivity of liquids under varying temperature/pressure conditions, including lubricating oils, nanofluids, refrigerants, liquid fuels, fluorinated liquids, and coolants.
