TC3500L High-Temperature Thermal Conductivity Meter

It can measure the thermal conductivity of gases within the temperature range of 10°C above room temperature to 600°C, and is applicable to various gases such as nitrogen, argon, and helium.

Product features:: High-temperature measurement capability: up to 600℃; Application: suitable for the study of gases thermal conductivity; Rapid measurement: data acquisition within 2 seconds

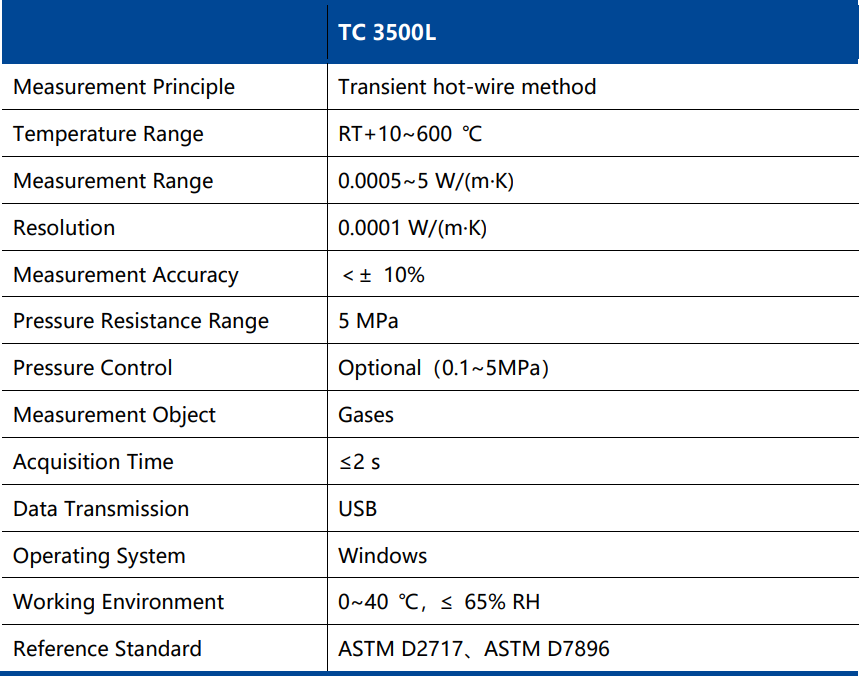

Description Technical Parameter Product Application

Description

The TC3500L ultra-high temperature gas thermal conductivity meter is a high-precision instrument specially developed for measuring gas thermal conductivity. Adopting the transient hot-wire technique, it can measure the thermal conductivity of gases within a temperature range of 10°C above room temperature to 600°C, with a pressure resistance up to 5MPa. The product features fast testing speed, high accuracy, high automation, and simple operation. Its professional structural design ensures sufficient shock resistance and durability. With only a small amount of sample required, it can obtain accurate and reliable thermal conductivity data, making it suitable for measuring the thermal conductivity of gases under different temperature and pressure conditions.

Key Features

l Gas-specific measurement: Utilizing the transient hot-wire method, a reliable approach for testing gas thermal conductivity.

l Rapid testing: Acquisition time ≤ 2s, effectively avoiding convection to ensure measurement accuracy.

l Wide temperature range: Capable of measuring thermal conductivity within 10°C above room temperature to 600°C.

l Broad pressure resistance: Withstands up to 5MPa, enabling the acquisition of thermal conductivity-pressure data.

l High automation: Automatic temperature control and measurement, as well as automatic data processing.

l Versatile application: Suitable for measuring gas thermal conductivity under varying temperature and pressure conditions.
