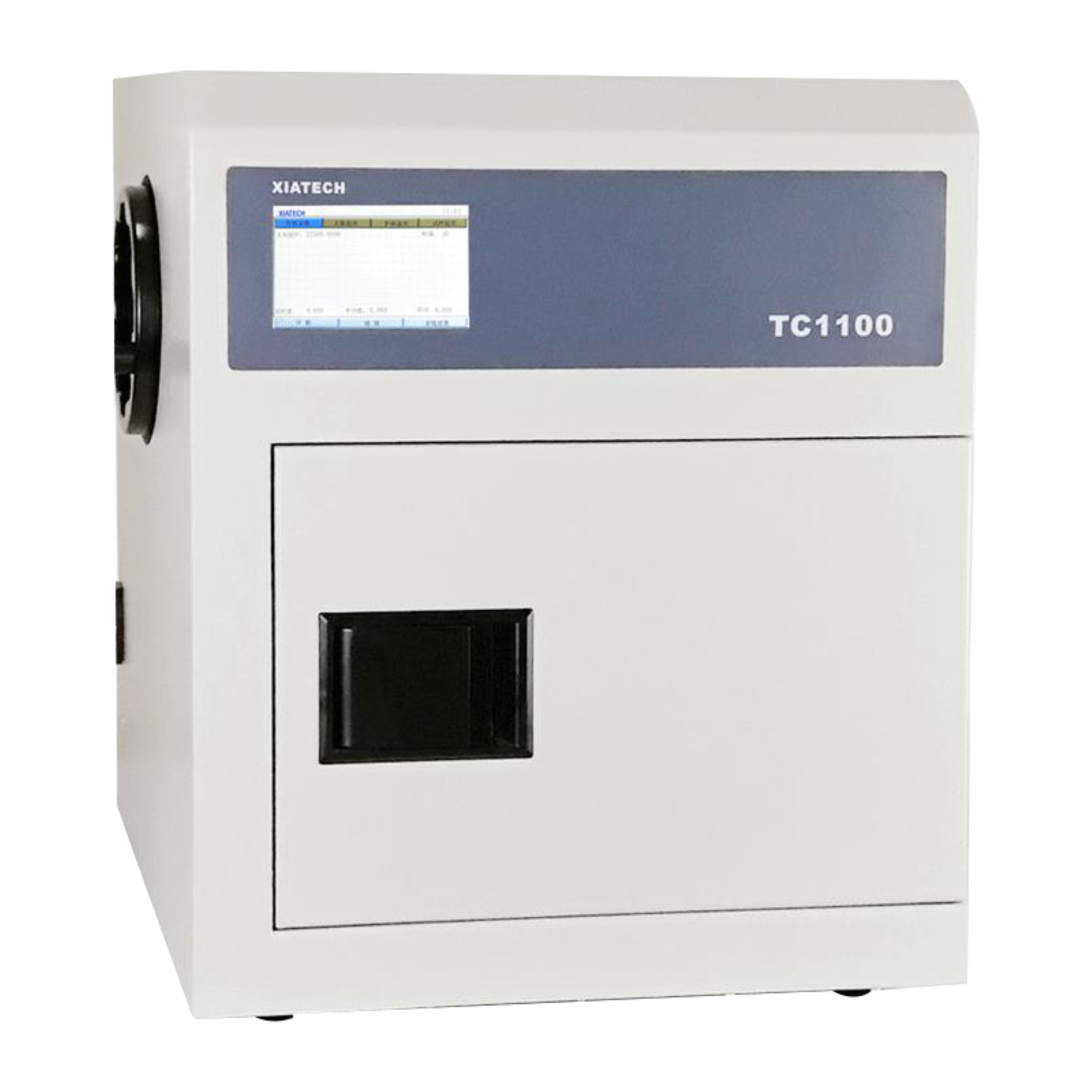

TC1000 Series GHP Thermal Conductivity Meter

An ideal tool for research and testing of thermal insulation materials, it can measure the thermal conductivity of such insulation materials as aerogel, polyurethane, phenolic resins, benzene boards.

Product features:: Wide temperature measurement range: -160~500 ℃; Sealed test chamber: Minimizing environmental interference; Automated operation: Automatic control/ measurement/pressure application/ data processing

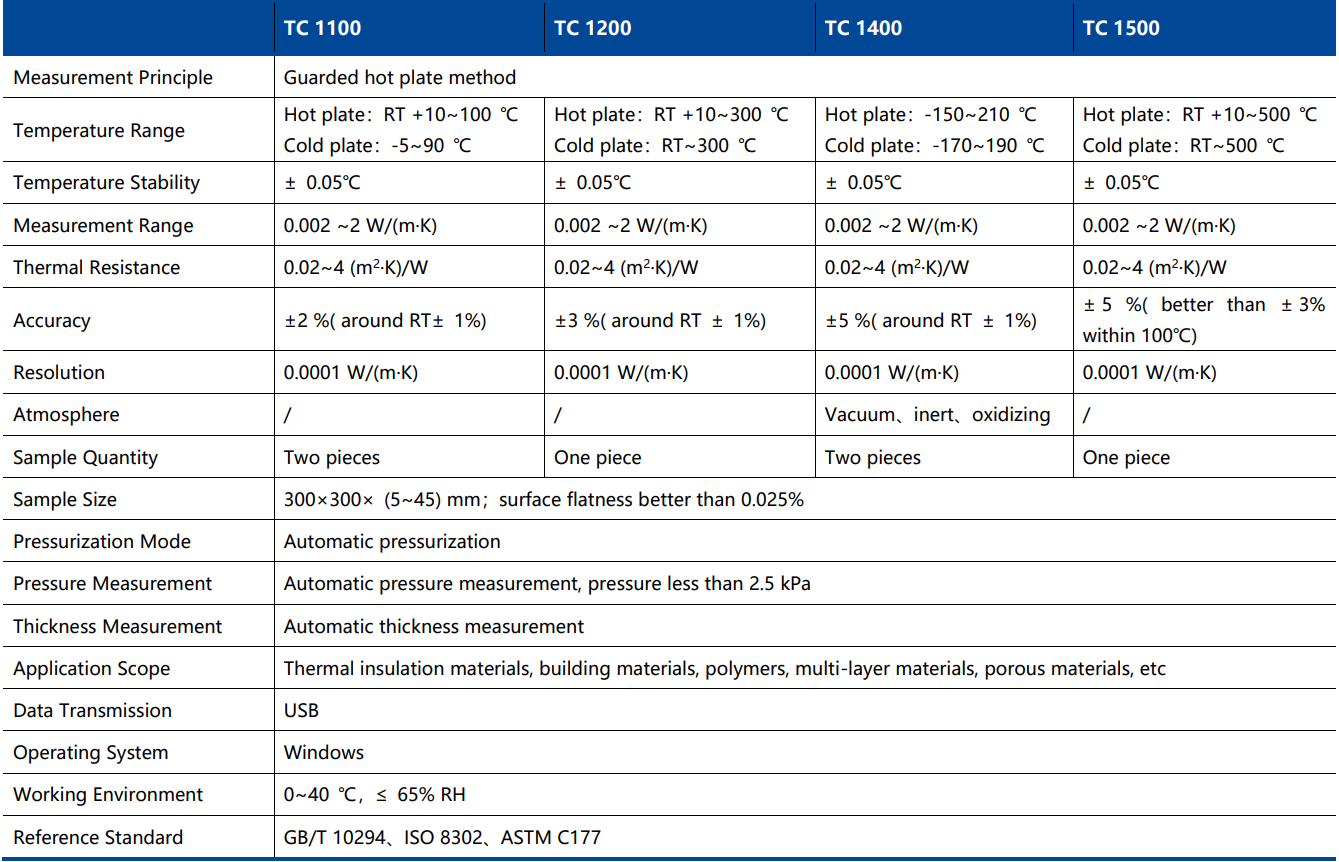

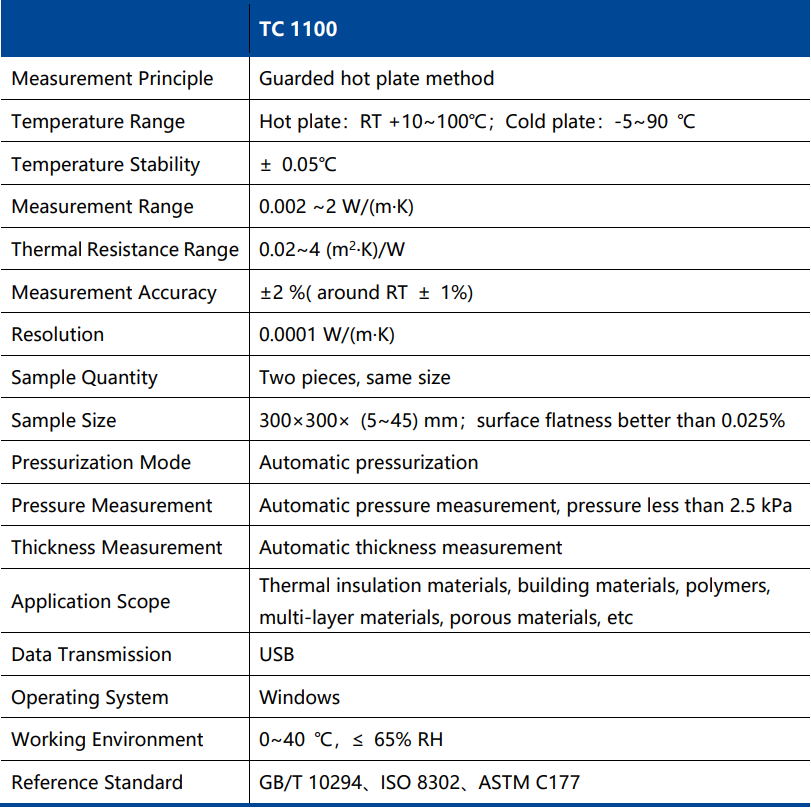

Description Technical Parameter Product Application

Description

The TC1000 Series Guarded Hot Plate Thermal Conductivity Meter is a steady-state instrument designed for building insulation materials, composites, multi-layer materials and porous materials, based on the guarded hot plate principle. It features high measurement accuracy, excellent temperature control stability, and capabilities of automatic pressure application/measurement and automatic thickness measurement, suitable for sample testing within the temperature range of -160~500℃.

Key Features

l High accuracy: ±1% at room temperature, better than ±3% over the full range, applicable for calibration of reference samples;

l Precise temperature control: Uniform temperature distribution on cold and hot plates with fluctuation ≤±0.05℃, ensuring measurement accuracy;

l Accurate one-dimensional heat transfer: High-precision multi-point thermopile for guarded hot plate control, effectively preventing heat loss and conforming to the ideal one-dimensional heat transfer model;

l Wide temperature range: Capable of testing samples at -160~500 ℃;

l Fully automated operation: Automatic temperature control, thickness measurement, pressure application/measurement, and multi-temperature point testing;

l Easy operation: Simple connections via USB for quick integration of main unit with testing software and temperature control system;

l Wide applicability: Suitable for insulation materials, multi-layer materials, foams, refractory materials, aerogels, etc.
