HomeProduct CenterThermal Conductivity > High-Temperature Thermal Conductivity Meter > TC1200 GHP Thermal Conductivity Meter

Return

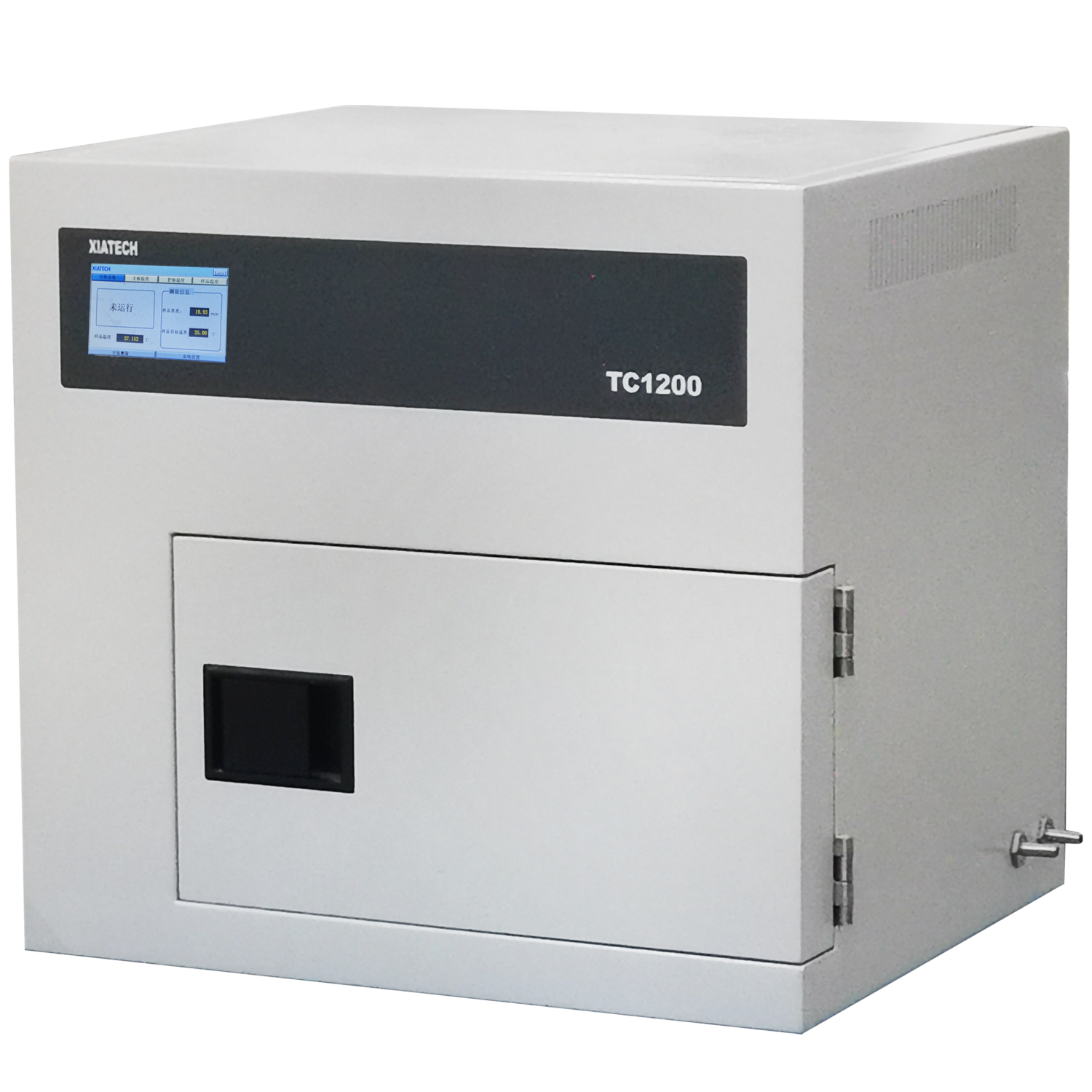

TC1200 GHP Thermal Conductivity Meter

Covering a temperature range from RT+10 to 300℃, it simultaneously delivers thermal conductivity and thermal resistance data, making it an ideal tool for research and testing of thermal insulation materials.

Product features:: High-temperature measurement capability: up to 300°C; Precise temperature control: fluctuation within ±0.05℃; Automated operation: automatic temperature/pressure control, thickness measurement, and data processing

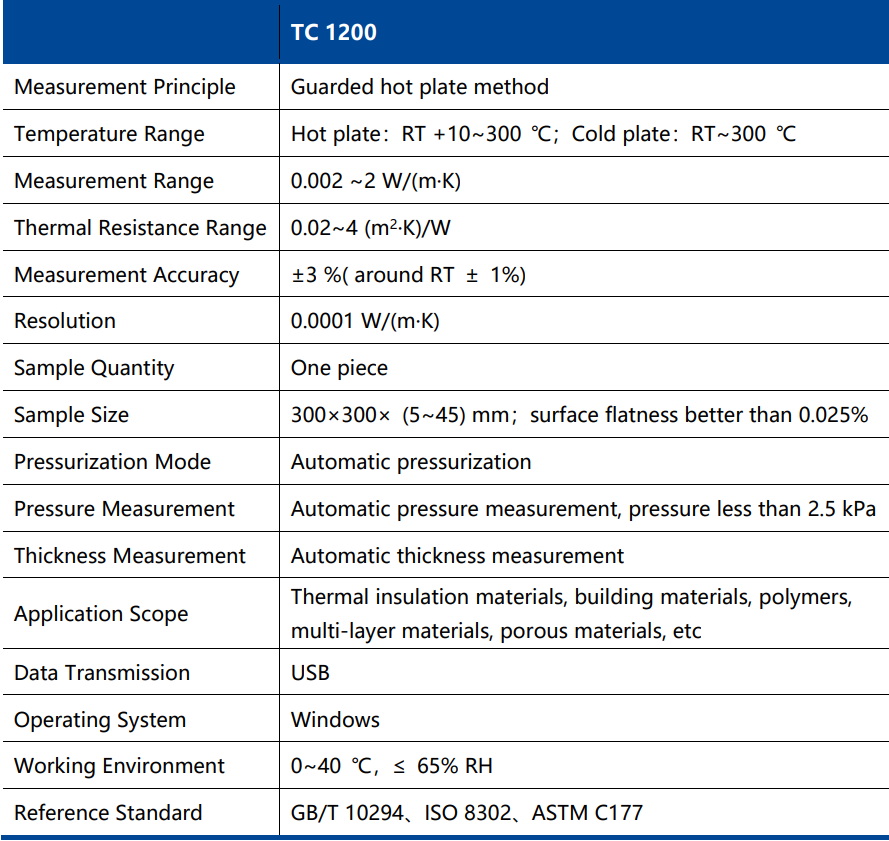

Description Technical Parameter Product Application

Description

The TC1200 High-Temperature Thermal Conductivity Meter is a steady-state instrument designed for thermal conductivity measurement, based on the guarded hot plate principle. It is specifically engineered for testing building insulation materials, composites, multi-layer materials, and porous materials. Boasting high measurement accuracy and excellent temperature control stability, it features automatic pressure application, pressure measurement, and thickness measurement, catering to sample testing across the temperature range from room temperature to 300°C.

Key Features

l High measurement accuracy: With an accuracy of up to 1% near room temperature, it can be used for calibrating reference samples.

l Precise temperature control: Uniform temperature distribution across cold and hot plates, with temperature fluctuation within ±0.05°C, ensuring reliable test results.

l Accurate one-dimensional heat transfer: Equipped with high-precision multi-point thermopiles for guarded hot plate temperature control, effectively preventing heat loss from the hot plate and conforming to the ideal one-dimensional heat transfer model.

l Fully automated operation: Automatic temperature control, thickness measurement, pressure application, pressure detection, and multi-temperature point measurement.

l Easy operation: Simple instrument connection; quick setup between the main unit, testing software, and temperature control system via USB.

l Wide applicability: Suitable for insulation materials, multi-layer materials, foam materials, refractory materials, aerogels, etc.
