HomeProduct CenterThermal Conductivity > High-Temperature Thermal Conductivity Meter > TC1500 GHP Thermal Conductivity Meter

Return

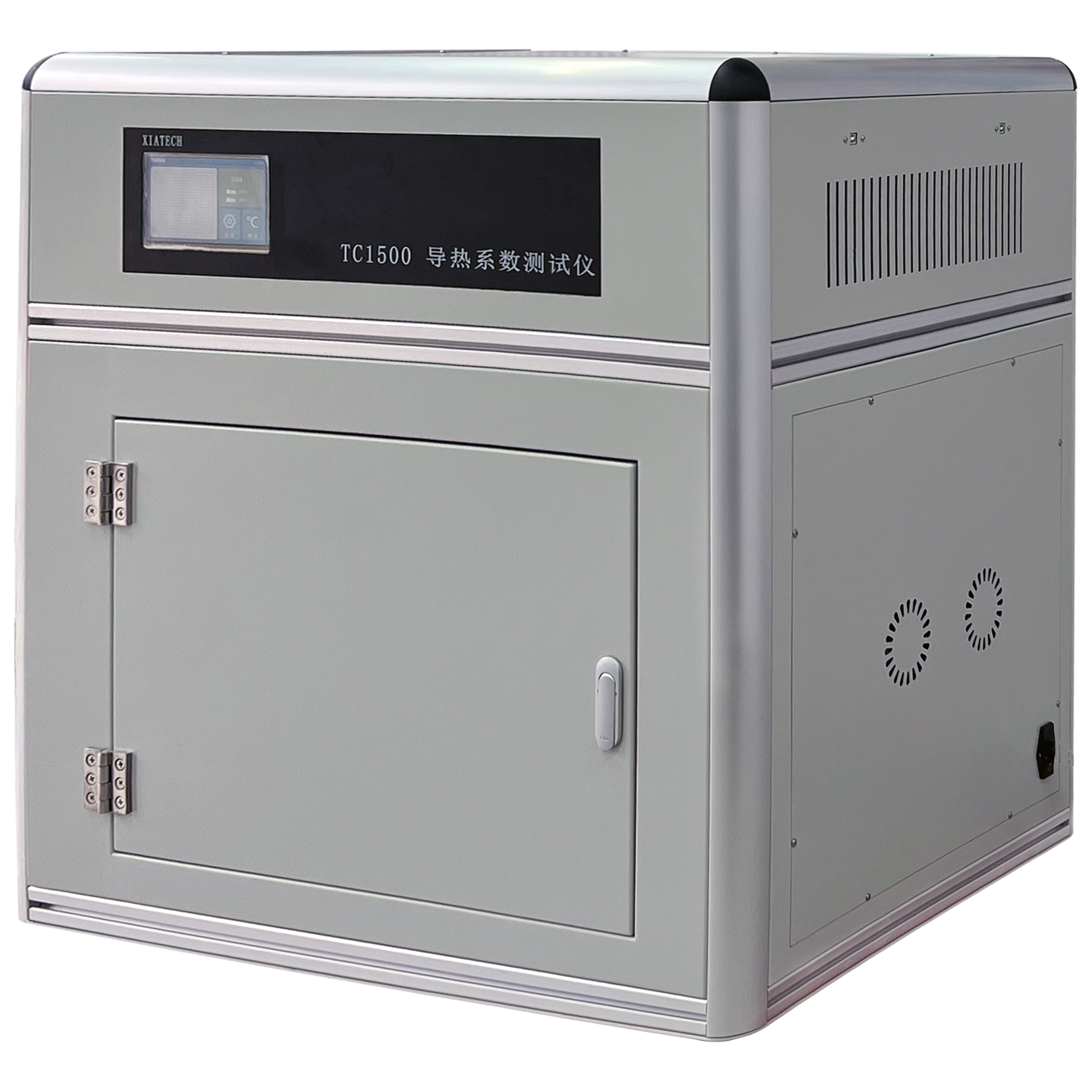

TC1500 GHP Thermal Conductivity Meter

With a temperature range from RT+10 to 500℃, it can simultaneously obtain thermal conductivity and thermal resistance, suitable for researching and testing of thermal insulation materials.

Product features:: High-temperature measurement capability: up to 500°C; Precise temperature control: fluctuation within ±0.05℃; Automated operation: automatic temperature/pressure control, thickness measurement, and data processing

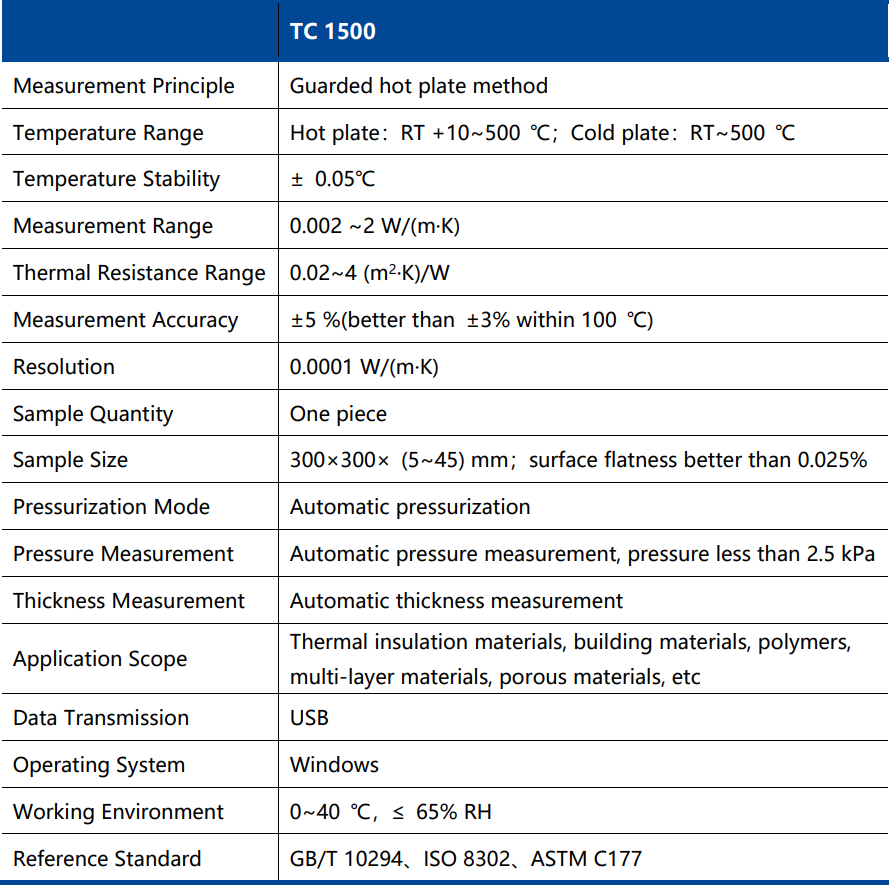

Description Technical Parameter Product Application

Description

The TC1500 Ultra-High Temperature Thermal Conductivity Meter is a steady-state instrument designed for measuring thermal conductivity based on the guarded hot plate principle. It is specifically designed for building insulation materials, composites, multi-layer materials, and porous materials. With high measurement accuracy and excellent temperature control stability, it features automatic pressure application, pressure measurement, and thickness measurement, accommodating sample testing across the temperature range from room temperature to 500 °C.

Key Features

l High measurement accuracy: Better than 3% within 100 °C, suitable for calibrating reference samples.

l Precise temperature control: Uniform temperature distribution on cold and hot plates with temperature fluctuation within ±0.05°C, ensuring accurate test results.

l Wide temperature measurement range: Capable of measuring thermal conductivity/thermal resistance at ultra-high temperatures up to 500°C.

l Accurate one-dimensional heat transfer: High-precision multi-point thermopiles enable guarded hot plate temperature control, effectively preventing heat loss from the hot plate and conforming to the ideal one-dimensional heat transfer model.

l Fully automated operation: Automatic temperature control, thickness measurement, pressure application, pressure detection, and multi-temperature point measurement.

l Easy operation: Simple instrument connection; quick setup between the main unit, testing software, and temperature control system via USB.

l Wide applicability: Suitable for insulation materials, multi-layer materials, foam materials, and refractory materials.
