HomeProduct CenterThermal Conductivity > Solid Thermal Conductivity Meter > TC2000 Heat Flow Thermal Conductivity Meter

Return

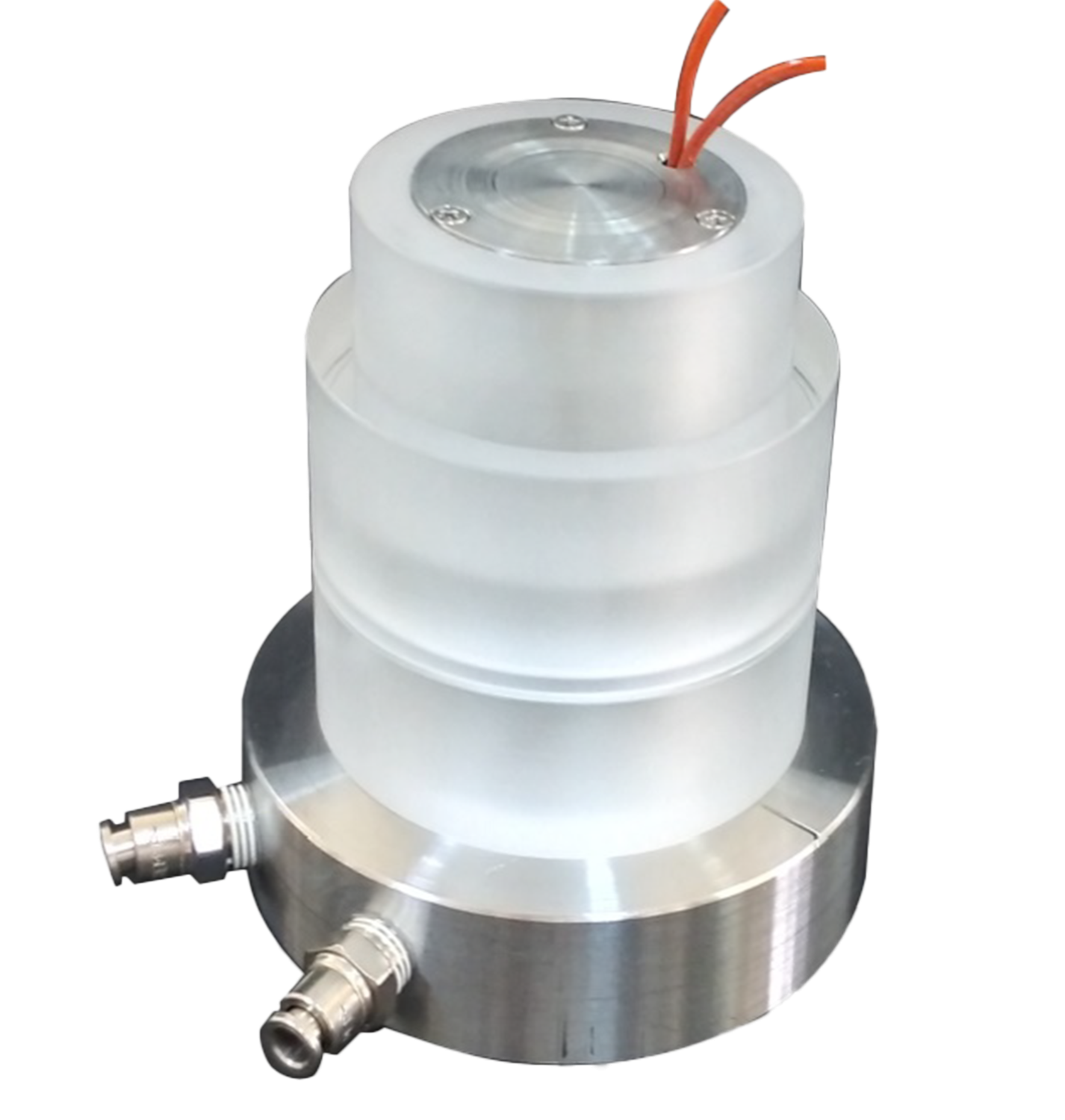

TC2000 Heat Flow Thermal Conductivity Meter

A single sample suffices for testing. It works with various materials like polymers, composites, multi-layer materials, porous materials, and pastes, complying with ASTM E1530 standard.

Product features:: Thermal conductivity and thermal resistance: Displaying both parameters simultaneously; Low sample requirement: Only one sample is needed for testing; High automation: Automatic measurement/control/ data processing

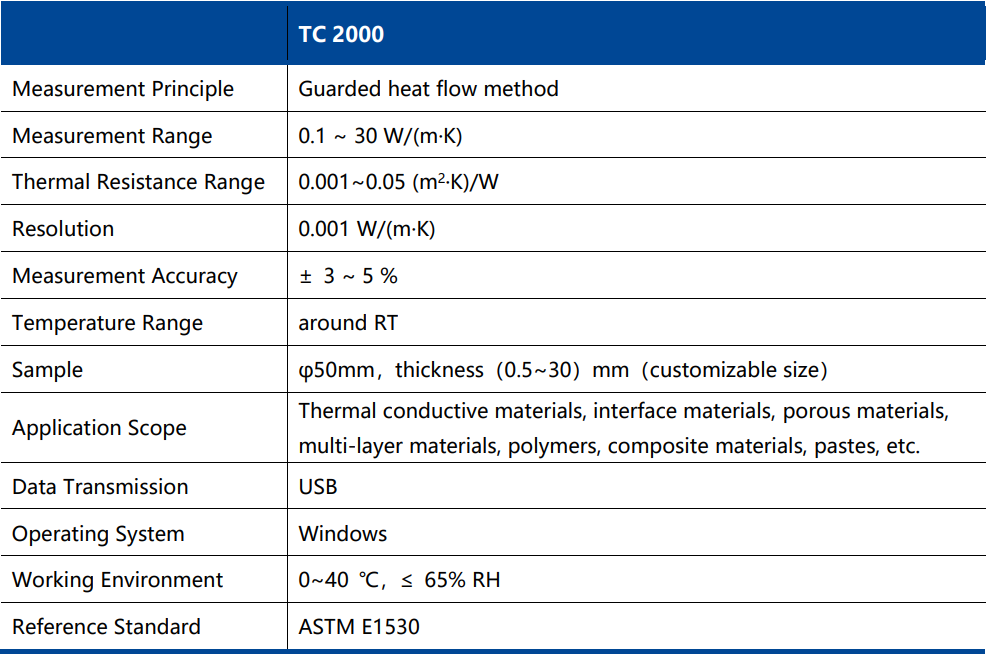

Description Technical Parameter Product Application

Description

The TC2000 Guarded Heat Flow Meter, based on the one-dimensional steady-state Fourier's law of heat conduction, adopts the guarded heat flow testing method. It can measure the thermal conductivity and thermal resistance of various materials such as polymers, composite materials, multi-layer materials, porous materials, and pastes. Boasting advantages like a small footprint, wide applicability, and low sample demand (only one sample is required for testing), the device also features excellent stability, simple operation, and a fully automated testing software, complying with the ASTM E1530 standard.

Key Features

l Automatic pressure application: The device automatically applies pressure to reduce contact thermal resistance.

l Automatic thickness measurement: The device automatically measures thickness, reducing human error and improving testing accuracy.

l Low sample requirement: Small sample size, with only one sample needed for testing; applicable to various materials such as blocks and pastes.

l Easy operation: Fully automated software enables functions like automatic temperature control and automatic data processing.
