HomeProduct CenterThermal Conductivity > Solid Thermal Conductivity Meter > TC2110 HFM Thermal Conductivity Meterr

Return

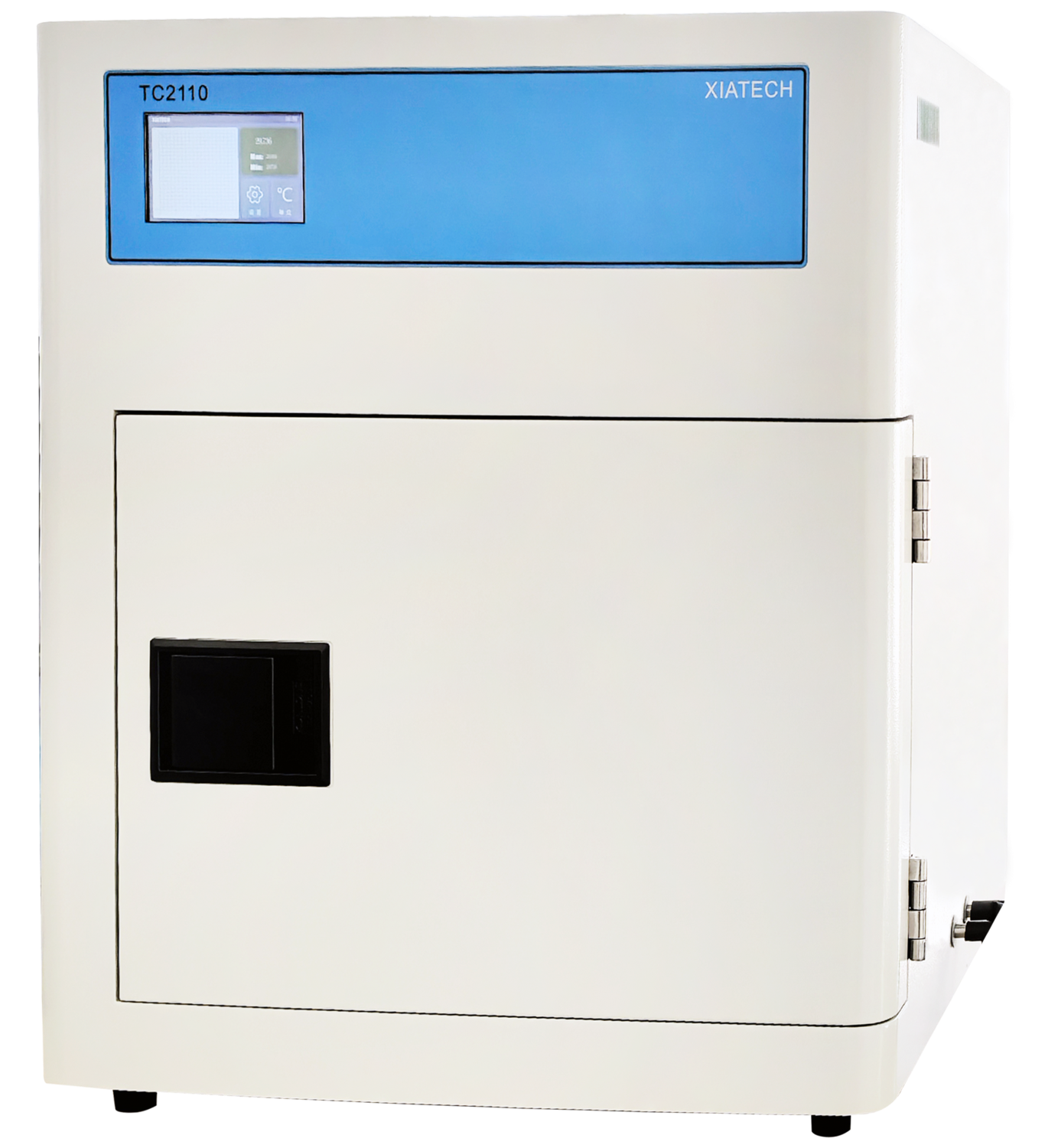

TC2110 HFM Thermal Conductivity Meterr

Developed with reference to ASTM C518 and GB/T 10295, it accurately measures the thermal conductivity of various materials such as low thermal conductivity materials, thermal insulation materials, and powders.

Product features:: Thermal conductivity and thermal resistance: Displaying both parameters simultaneously; High measurement accuracy: Professional pressure design and precise temperature control ensure high accuracy of results; High automation: Automatic measurement/control/ data processing

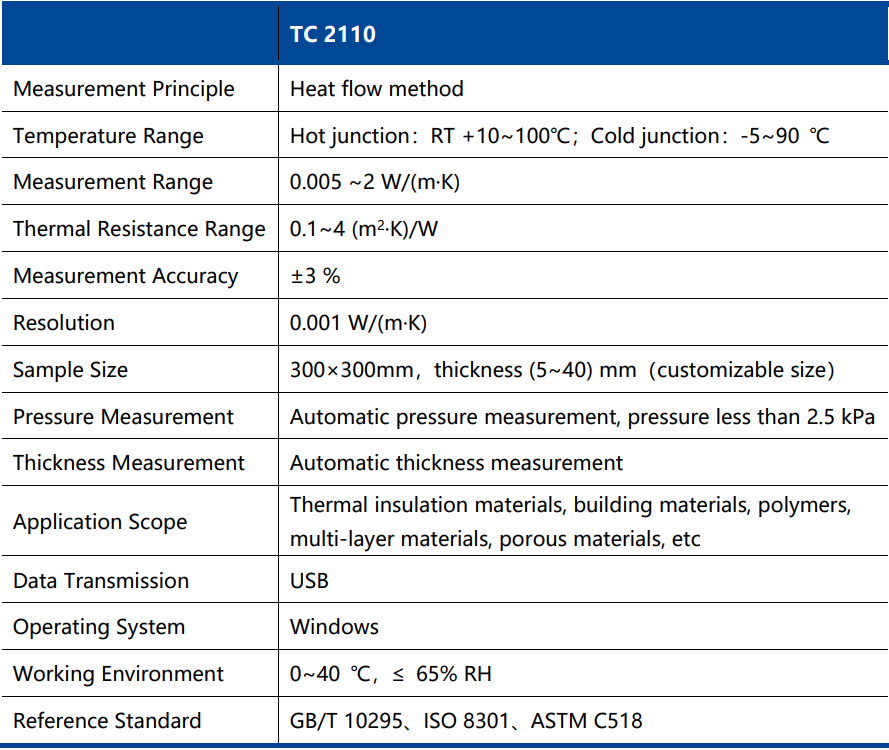

Description Technical Parameter Product Application

Description

The TC 2110 Heat Flow Meter for thermal conductivity measurement is based on the widely used heat flow meter method. Equipped with a professional heat transfer design model and precise heat flow measurement technology, it can accurately determine the thermal conductivity of various materials such as low thermal conductivity materials, thermal insulation materials, and powders. Featuring high measurement accuracy, a wide temperature range, precise temperature control, fully automated operation, and customizable sample sizes, it is widely applied in scientific research and quality control across industries like energy-saving insulation, energy storage, and new material design.

Key Features

l Accurate measurement: Adopting the heat flow meter method with minimal temperature fluctuation, ensuring high precision.

l Precise temperature control: Uniform temperature distribution on cold and hot plates, with temperature control fluctuation within ±0.05℃, enhancing result accuracy.

l Automatic thickness measurement: High-precision displacement sensors enable automatic thickness detection, avoiding large errors from manual operations.

l Fully automated operation: Functions include automatic thickness measurement, temperature control, pressure application, pressure measurement, and data processing.

l Easy operation: Simple instrument connection; quick setup between host, testing software, and temperature control system via USB.

l Wide applicability: Suitable for insulation materials, multi-layer materials, foam materials, refractory materials, aerogels, etc.
