HomeProduct CenterHeat Capacity > High-Temperature Calorimeter > HC2200 Liquid Calorimeter

Return

HC2200 Liquid Calorimeter

It covers a temperature range from 10°C above room temperature to 300°C and a pressure range of 0.1~15 MPa (higher pressures available on request), featuring an automatic temperature regulation function.

Product features:: Flow calorimetry：specifically for precise measurement of liquid specific heat; High-temperature measurement: up to 300°C; Highly automated: sampling/ pressurization / measurement

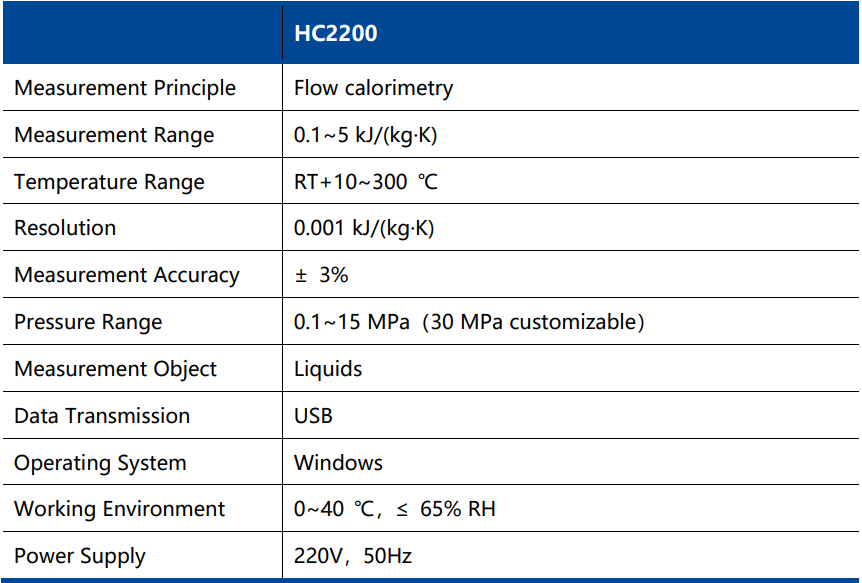

Description Technical Parameter Product Application

Description

The HC2200 high-temperature liquid calorimeter adopts the flow calorimetry method, a direct and reliable experimental technique for acquiring material specific heat data of substances. It features high testing accuracy (up to ±1%), a wide temperature measurement range (room temperature to 300°C), and simple operation. With full automation, users can complete a series of automated experimental processes such as temperature control, sample injection, pressurization, and data processing through simple software operations. It is suitable for measuring the specific heat of various liquids including oils, liquid fuels, fluorinated liquids, coolants, and chemical reagents.

Key Features

l High measurement accuracy: Testing accuracy reaches ±1%, with less than ±3% across the full range.

l Wide temperature measurement range: Capable of obtaining liquid specific heat capacity data within the range of room temperature+10~300℃.

l Broad pressure range: Pressure measurement spans 0.1~15MPa (30MPa available upon customization).

l Precise temperature control: Equipped with automatic temperature regulation, with temperature control fluctuation better than ±0.05℃, ensureing high accuracy of measurement results.

l High automation: Enables automatic temperature control, automatic pressurization, and automatic data processing, with simple operation and easy maintenance.
