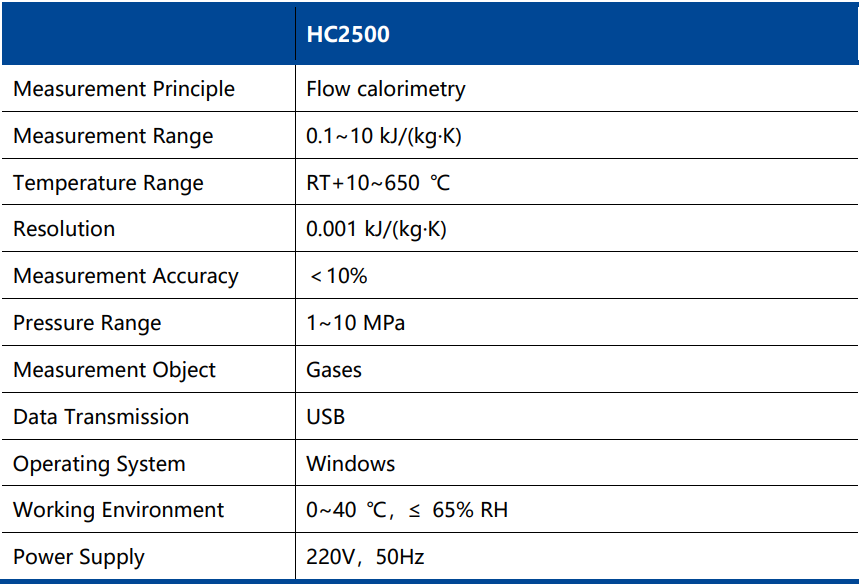

Description Technical Parameter Product Application

Description

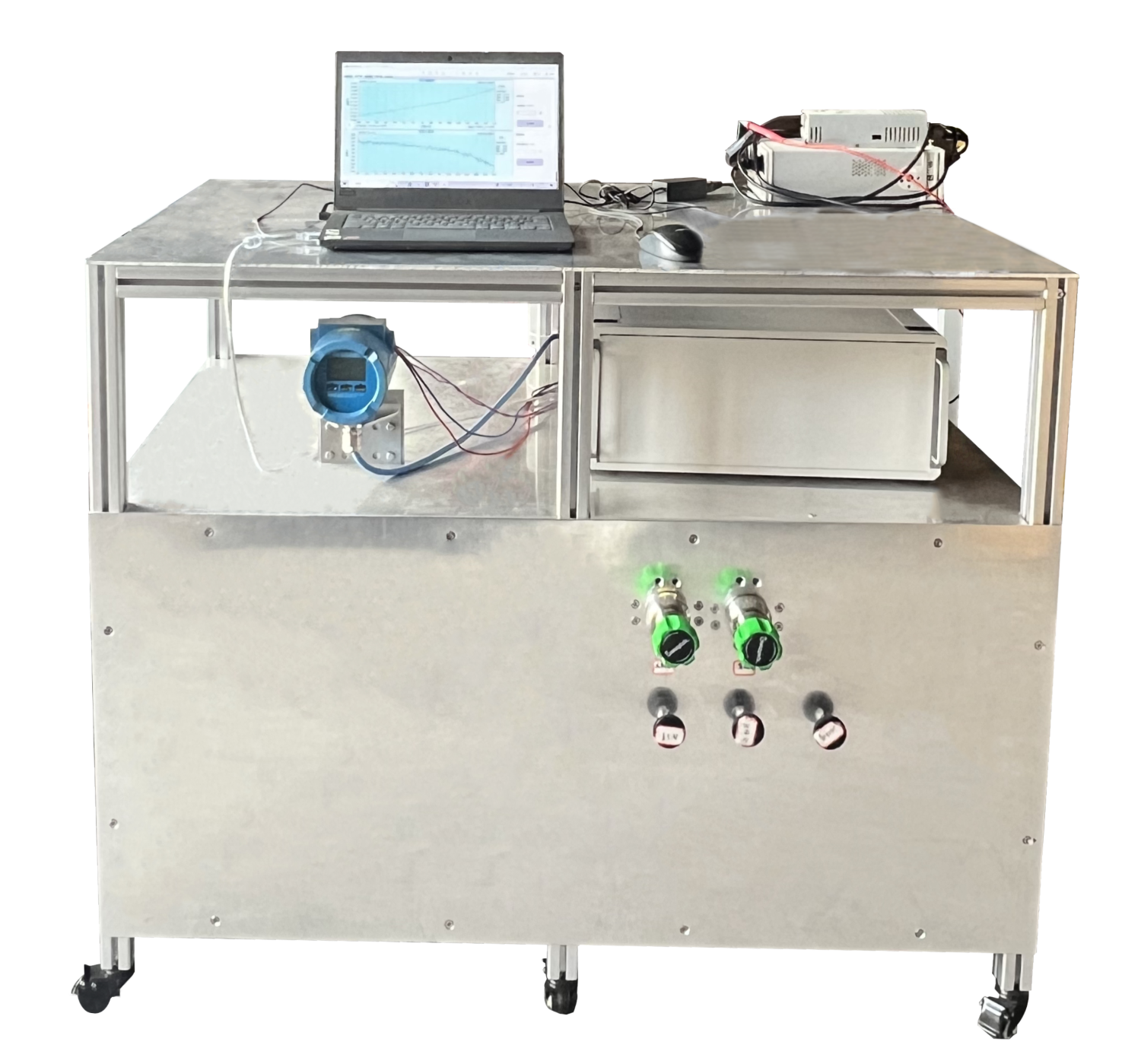

The HC2500 High-Temperature Gas Calorimeter adopts the flow calorimetry method, a direct and reliable experimental approach for obtaining material specific heat data. It features a wide temperature measurement range (room temperature to 650℃) and simple operation, capable of measuring gas specific heat capacity under high-temperature and high-pressure conditions. With full automation, users can complete a series of automated experimental procedures such as temperature control, sample injection and data processing through simple software operations. It is suitable for measuring the specific heat capacity of various gases.

Key Features

l Wide temperature measurement range: Capable of obtaining gas specific heat capacity data within 10℃ above room temperature to 650℃.

l Wide pressure range: 0.1~10MPa for pressure measurement.

l Precise temperature control: Equipped with automatic temperature regulation to ensure high accuracy of measurement results.

l High automation: Enables automatic temperature control, automatic pressurization, and automatic data processing, with simple operation and easy maintenance.

Boasting high testing accuracy, the instrument features automatic sampling, automatic temperature control, continuous automatic measurement at multiple temperature points.
