With a temperature measurement range of RT+10~200℃, it is suitable for measuring the thermal conductivity of samples in various forms, including blocks, sheets, powders, granules, pastes and colloids.

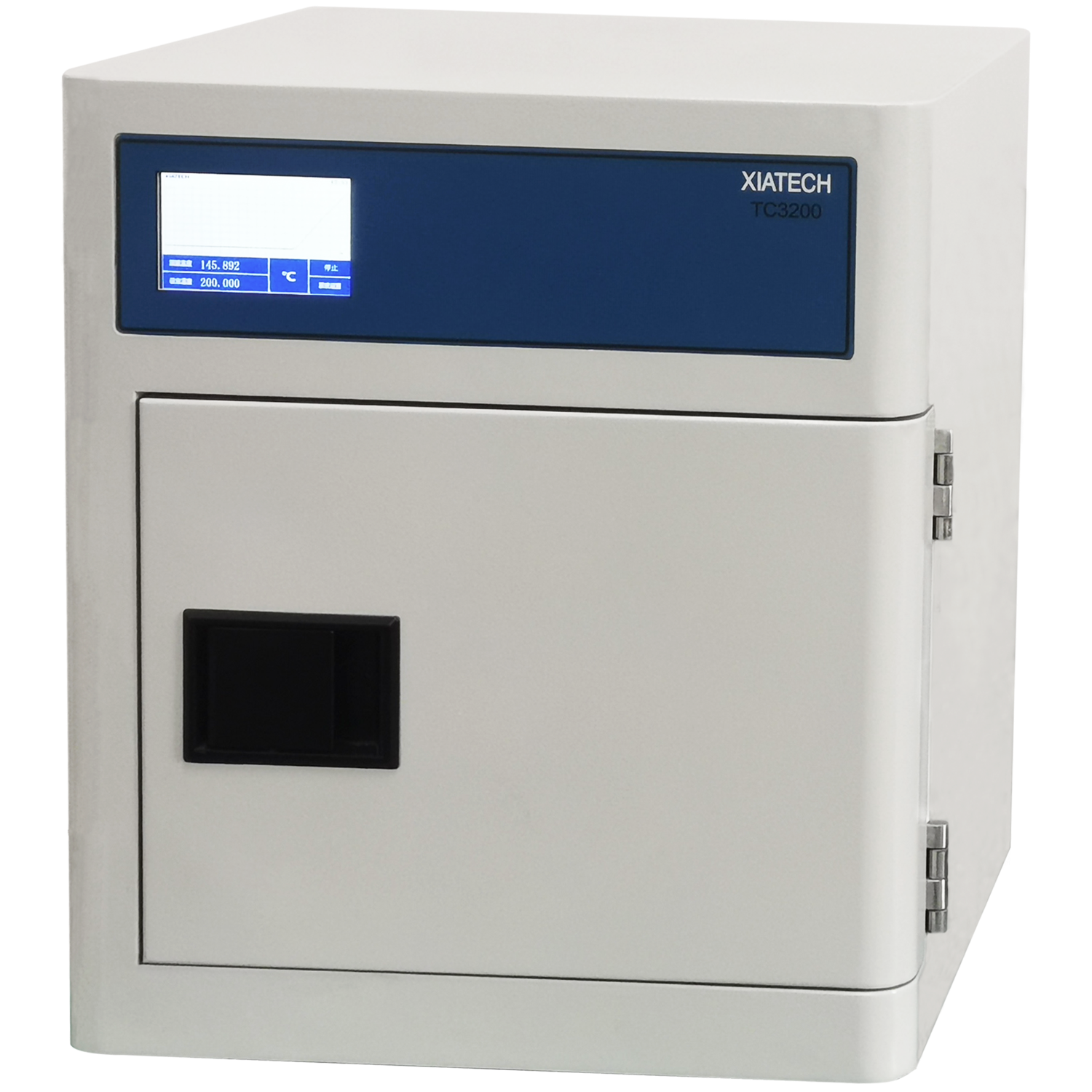

The TC 3200 High-Temperature Thermal Conductivity Meter is widely applicable for measuring thermal conductivity across a diverse range of materials, including thermal insulation materials, thermal conductive materials, phase change materials, composite materials, soil and rock, biomass materials, and cast iron alloys. Whether the material is in block, sheet, powder, paste, or colloid, a single instrument can quickly and reliably determine its thermal conductivity, significantly reducing users' testing costs. Equipped with a precision PID temperature control system, it operates within a temperature range of 10°C above room temperature to 200°C, catering to experimental needs in various fields such as thermal management, bridge subgrades, underground new energy, geotechnics, clothing and textiles, food storage, petrochemicals, and building insulation.

Key Features

l Higher measurement accuracy: Over two decades of technical development ensures high testing accuracy.

l Faster testing speed: Results can be obtained within minutes under stable temperature conditions.

l Minimal sample requirements: No specific shape or size is needed (only requiring a side length of over 25mm).

l Easier operation: Flexible and simple probe usage, USB interface, and automatic data collection by testing software reduce demands on operators.

l Stable temperature control: The precision PID temperature control system, covering 10°C above room temperature to 200°C, enables thermal conductivity data collection at different temperatures.

l Wider application scenarios: Suitable for laboratory testing, on-site inspection, finished product testing, and real-time detection. It accommodates various materials from thermal insulation and heat-conducting materials to phase change materials, and handles diverse forms (block, sheet, powder, paste, colloid), providing quick and reliable results with a single device to maximize cost savings for users.
