HomeProduct CenterViscosity > Liquid Viscometer > VM2000 Series Liquid Viscometer

Return

VM2000 Series Liquid Viscometer

Designed to meet the demands of liquid viscosity measurement under varying temperature and pressure conditions, it features a compact structure, user-friendly operation, and high measurement accuracy.

Product features:: Automatic operation: automatic sampling/control/measurement; Sealed test chamber: especially suitable for measuring volatile liquids; Broad testing range: temperature -160℃ ~ 300℃, pressure 15 MPa

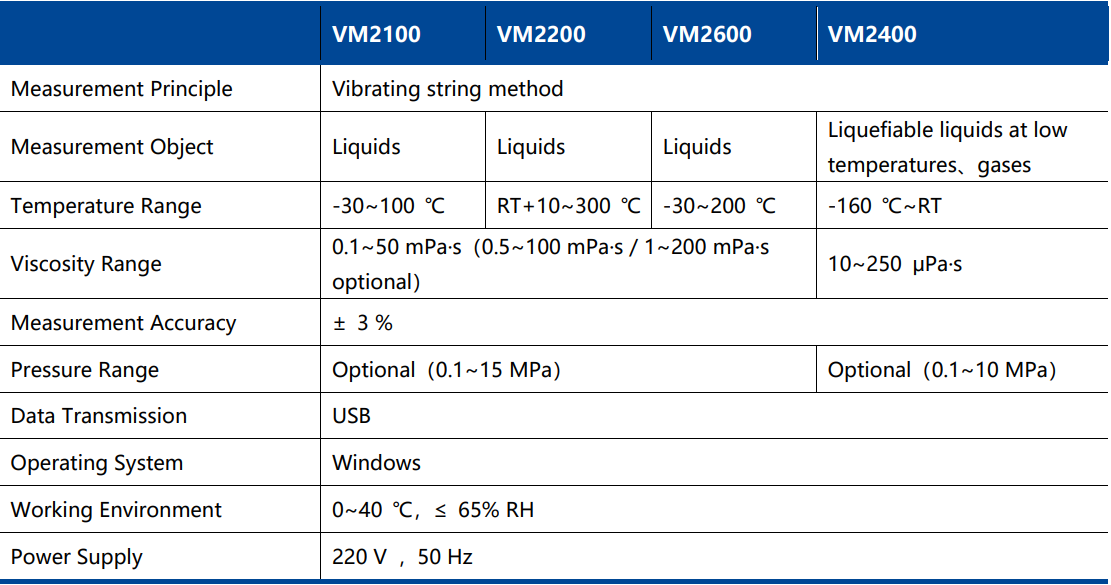

Description Technical Parameter Product Application

Description

The VM2000 series liquid viscometers utilize the vibrating wire measurement method to obtain viscosity data of the tested liquids. Boasting high measurement accuracy, excellent stability, and user-friendly operation, they find extensive application in the testing and research of various liquids such as refrigerants, lubricating oils, coolants, and fluorinated fluids. The sealed chamber is particularly suitable for measuring volatile liquids, and equipped with a pressure module, it can simultaneously generate viscosity-temperature and viscosity-pressure curves.

Key Features

l High precision and stability: Adopting the vibrating wire method, they deliver high measurement accuracy and good repeatability, unaffected by surface tension and interfacial tension.

l Wide temperature range: Covering from low temperatures (-160℃) to high temperatures (300℃), with support for customized temperature ranges, making them suitable for various complex working conditions.

l High-pressure measurement capability: Withstand pressures up to 15 MPa, meeting viscosity measurement requirements under high-pressure conditions.

l Gas measurement capability: The VM2400 model is specifically designed for gases and low-temperature liquefied liquids, with a temperature measurement range as low as -160℃.

l Automated operation: Supporting functions such as automatic temperature control, automatic pressure application, and automatic sample injection, it simplifies operation and reduces labor costs.

l Sealed test chamber: Ideal for measuring volatile liquids, ensuring the safety and accuracy of the measurement process.

l Professional software support: Equipped with intuitive testing software that enables automatic data collection and analysis, facilitating users in quickly obtaining reliable data.
