HomeProduct CenterDensity > Low-temperature Densimeter > DM2100 Liquid Densimeter

Return

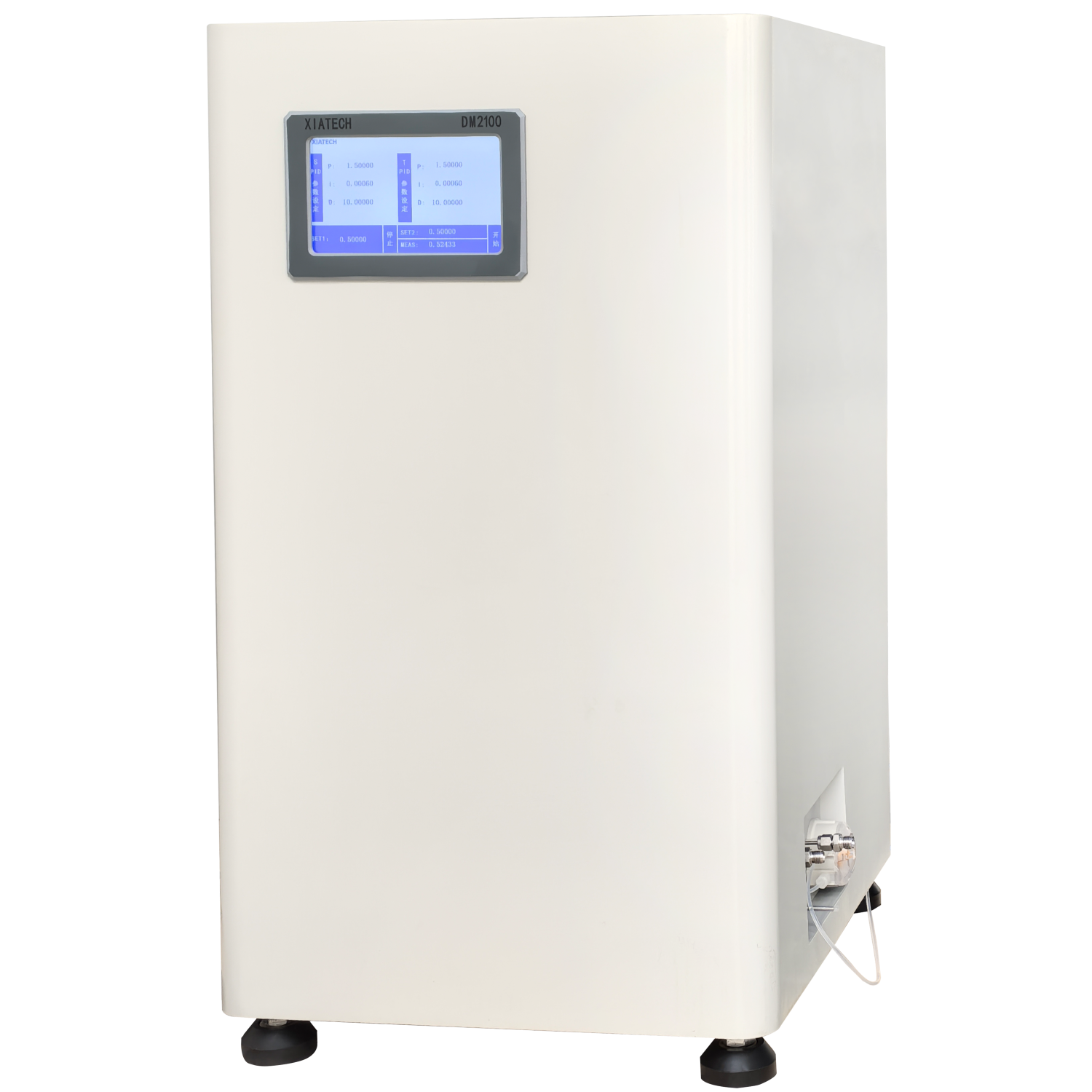

DM2100 Liquid Densimeter

The densimeter provides precise density datas from -30°C to 100°C. It's user-friendly and automated, fitting a wide array of liquids like refrigerants, oils, toluene, alcohols, ethers, fluorinated liquids, and ionic liquids.

Product features:: Fully automated: Controls & measures, records & analyzes; Wide pressure range: 0~15 MPa, scalable on request; Accuracy: Ensures reliable data with absolute measurement

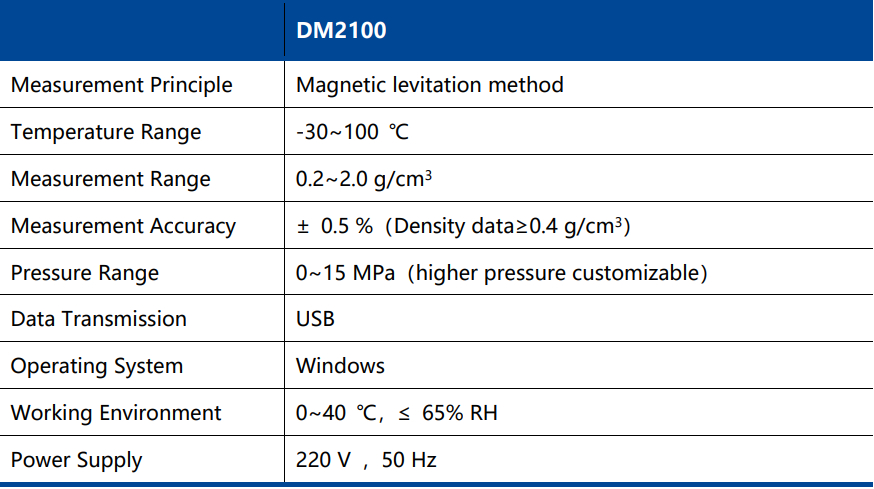

Description Technical Parameter Product Application

Description

Built on buoyancy principles and developed by magnetic-levitation technology, the DM2100 Low-temperature Liquid Densimeter delivers high-accuracy density data over a wide span of -30 °C to 100 °C and from vacuum to 15 MPa (higher pressures on request). The contactless magnetic coupling isolates the sensor from the fluid, making the unit ideal for electronic fluorinert liquids, refrigerants, lubricants, jet fuel and specialty chemicals in liquid, vapour or supercritical phases.

Key Features

l Accuracy: < ±0.5 % across the entire temperature range

l Temperature span: -30 °C to 100 °C (customizable temperature ranges available)

l Stability: ±0.05 °C temperature control

l Pressure range: 0~15 MPa (scalable)

l Automated Testing: temperature/pressure control, data logging and analysis
