HomeProduct CenterVapor Pressure > Automated Vapor Pressure Tester > VP2000 Series Vapor Pressure Tester

Return

VP2000 Series Vapor Pressure Tester

The device features automatic measurement(including sampling, temperature control, temperature/pressure measurement, and data processing), enabling high-precision vapor pressure measurement within -30~250℃

Product features:: Fully automatic control: automatic sampling/measurement/data processing; Wide temperature measurement range: -30~250℃; Extended functions: boiling point testing, and latent heat of vaporization obtained via calculation

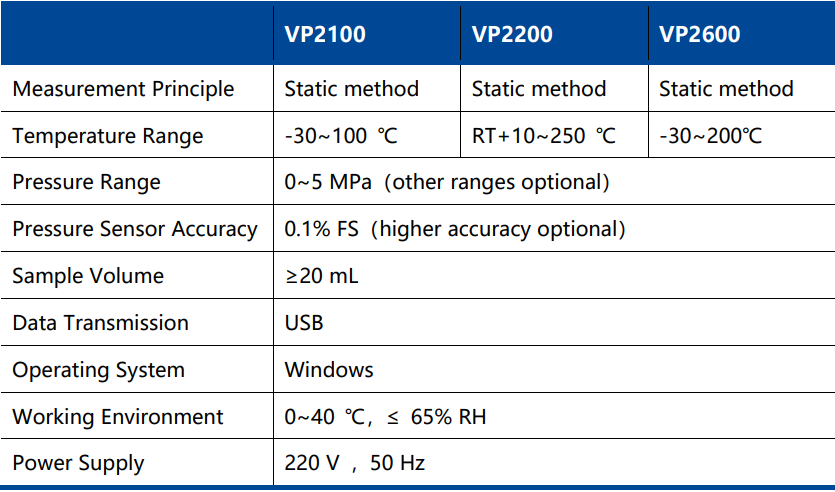

Description Technical Parameter Product Application

Description

The VP2000 series automatic vapor pressure tester features fully automatic measurement functionality, including three models: VP2100 (medium and low temperature type), VP2200 (high temperature type), and VP2600 (full temperature type). It enables vapor pressure measurement within a temperature range of -30~250℃ and a pressure range of 0~5MPa. The equipment is equipped with functions such as automatic sample injection/discharge and vacuum pumping; it can also realize program-controlled temperature. Without the need for personnel to monitor beside the equipment, it can automatically complete the multi-condition test tasks set by users, improving measurement efficiency. The automatic vapor pressure tester has the advantages of high-precision temperature control, temperature measurement, and pressure measurement, and is suitable for high-precision automatic vapor pressure measurement of various fluids such as chemical reagents, electronic fluorinated liquids, refrigerants, lubricating oils, aviation kerosene, and fine chemicals.

Key Features

l Fully automated control: Enables automatic sample injection, temperature control, temperature measurement, pressure measurement, and automatic data processing, with high testing efficiency;

l Wide temperature measurement range: Applicable to -30~250℃, and can be extended to higher or lower temperatures;

l Accurate pressure measurement: Adopts a high-precision pressure sensor with a measurement accuracy of less than 0.1% FS (higher accuracy can be customized);

l Wide pressure measurement range: The pressure range is 0~5MPa, with optional ranges and support for customization of higher pressures;

l Safety overpressure protection: Equipped with an automatic pressure relief function to prevent exceeding the set maximum pressure.
