HomeProduct CenterPhase Equilibrium > High-Pressure Phase Equilibrium Tester > VLE1000 Phase Equilibrium Tester

Return

VLE1000 Phase Equilibrium Tester

The maximum pressure is 4MPa, enabling the measurement of phase equilibrium parameters for various low-boiling-point pure substances、binary、ternary systems within -30~60℃.

Product features:: High-pressure measurement: The maximum pressure can reach 4MPa; Automatic sampling: multiple quantitative analysis with a single injection; Multi-parameter output：temperature, pressure, liquid/gas phase mole fractions

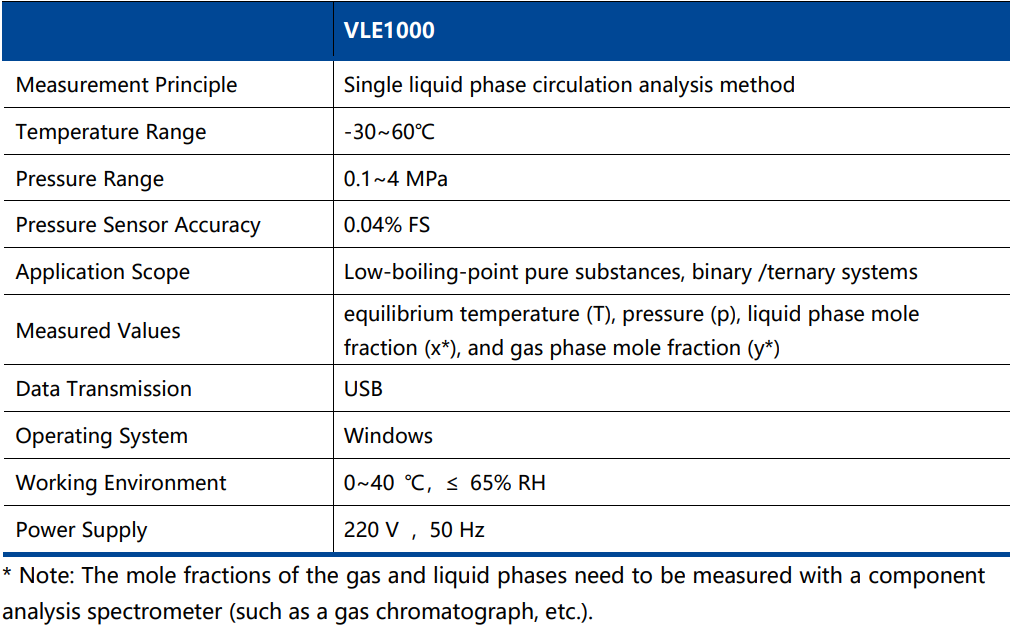

Description Technical Parameter Product Application

Description

The VLE1000 low-temperature phase equilibrium tester, developed based on the circulation analysis method, achieves system equilibrium by forcing two-phase flow through a liquid-phase circulation pump. It can sample and analyze gas-liquid phase samples by connecting to a chromatograph, featuring high temperature measurement accuracy (-30~60℃, accuracy better than 0.02℃), a wide pressure measurement range (0.1~4MPa), and accurate measurement. Combined with independently developed programs, it can realize automatic temperature control, automatic pressurization, automatic sampling, and data analysis. It is applicable for testing vapor-liquid equilibrium parameters of various low-boiling-point (gaseous at room temperature) pure substances and binary/ternary systems, and is particularly suitable for measuring refrigerants and their mixtures.

Key Features

l Wide temperature measurement range: Suitable for measurements within the temperature range of -30~60℃;

l Accurate temperature measurement: Temperature measurement accuracy reaches 0.02℃, ensuring reliable temperature data;

l High temperature control precision: Temperature fluctuation is less than ±0.05℃, ensuring experimental stability;

l Wide pressure measurement range: Pressure range of 0.1~4MPa, with support for custom higher pressure;

l Accurate pressure measurement: Adopting a high-precision pressure sensor, the measurement uncertainty of the pressure sensor is less than 0.04% FS;

l High degree of automation: Capable of automatic temperature control, automatic temperature measurement, automatic pressure measurement, and data processing;

l Automatic sampling: Enables multiple high-precision quantitative sampling and analysis with one injection, featuring short experimental time and stable experimental results.
