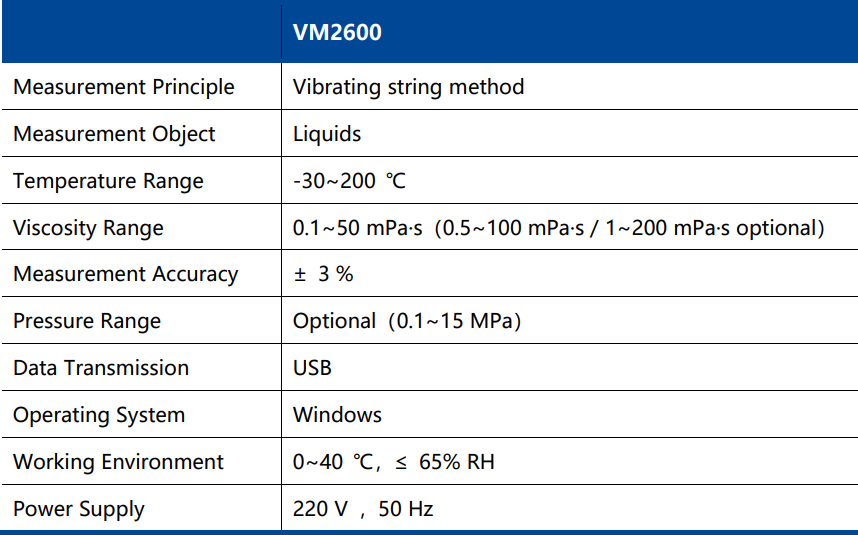

Description Technical Parameter Product Application

Description

The VM2600 low-temperature viscometer, utilizing the vibrating wire test method, enables the acquisition of viscosity data for measured liquids. It features high measurement accuracy, excellent stability, and simple operation, finding wide application in the testing and research of various liquids such as refrigerants, lubricating oils, coolants, and fluorinated liquids. Its sealed chamber is particularly suitable for measuring volatile liquids, and when equipped with a pressure module, it can simultaneously obtain viscosity-temperature and viscosity-pressure curves.

Key Features

l High precision and stability: Adopting the vibrating wire method, it offers high measurement accuracy and good repeatability, free from the influence of surface tension and interfacial tension.

l Wide temperature range: Covering -30~200℃, with support for customization to lower or higher temperatures.

l High-pressure measurement capability: Withstand pressure up to 15 MPa, meeting viscosity measurement needs under high-pressure conditions.

l Fully automated operation: Supporting functions such as automatic temperature control, automatic pressure regulation, and automatic sample injection, it is easy to operate and reduces labor costs.

l Sealed test chamber: Suitable for measuring volatile liquids, ensuring the safety and accuracy of the measurement process.

l Professional software support: Equipped with a concise and intuitive testing software that supports automatic data collection and analysis, facilitating users to quickly obtain reliable data.

With a temperature measurement range of -30~200℃, it is suitable for viscosity characteristic studies of various liquids under different temperature and pressure conditions.
