It simultaneously measures liquid viscosity and density, with a temperature range from RT+10°C to 200°C, suitable for measuring viscosity-temperature and viscosity-pressure curves of various liquids.

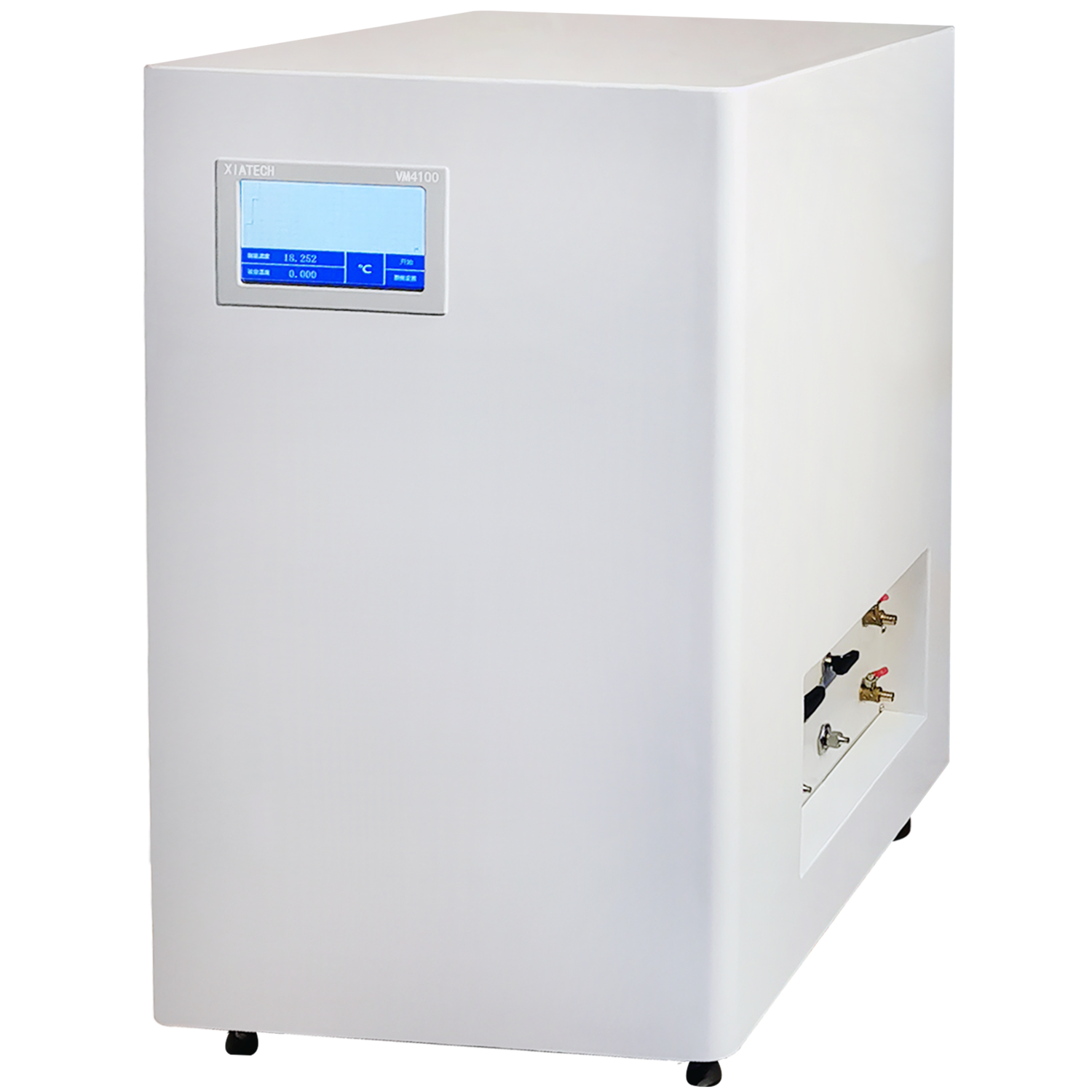

Viscosity and density are key thermophysical properties of substances, with important and extensive applications. Currently, there are various devices on the market for measuring viscosity and density, but relatively few instruments can simultaneously test fluid viscosity and density over a wide temperature range and under high-pressure conditions. In response to this situation, our company has launched the VM4000 series of high-temperature viscosity-density meters, aiming to meet the needs of precise measurement under special working conditions.

Key Features

l Multi-parameter measurement: Capable of simultaneous measurement of viscosity and density, enabling the acquisition of viscosity-temperature curves, viscosity-pressure curves, and calculation of viscosity-temperature coefficients and viscosity-pressure coefficients.

l High-temperature testing capability: Temperature measurement range from room temperature +10 to 200℃, suitable for measuring viscosity-temperature and viscosity-pressure curves of various liquids under high temperature and pressure.

l Wide pressure measurement range: Equipped with a pressure control module, it can achieve viscosity measurement within 0.1~15 MPa, with support for customized higher pressure.

l High precision and stability: Adopting the vibrating wire method, it offers high measurement accuracy and good repeatability, unaffected by surface tension and interfacial tension.

l Automated operation: Supports functions such as automatic temperature control, automatic pressurization, and automatic sample injection, featuring simple operation and reduced labor costs.

l Sealed test chamber: Suitable for measuring volatile liquids, ensuring the safety and accuracy of the measurement process.

l Professional software support: Equipped with a concise and intuitive test software that supports automatic data collection and analysis, facilitating users to quickly obtain reliable data.
