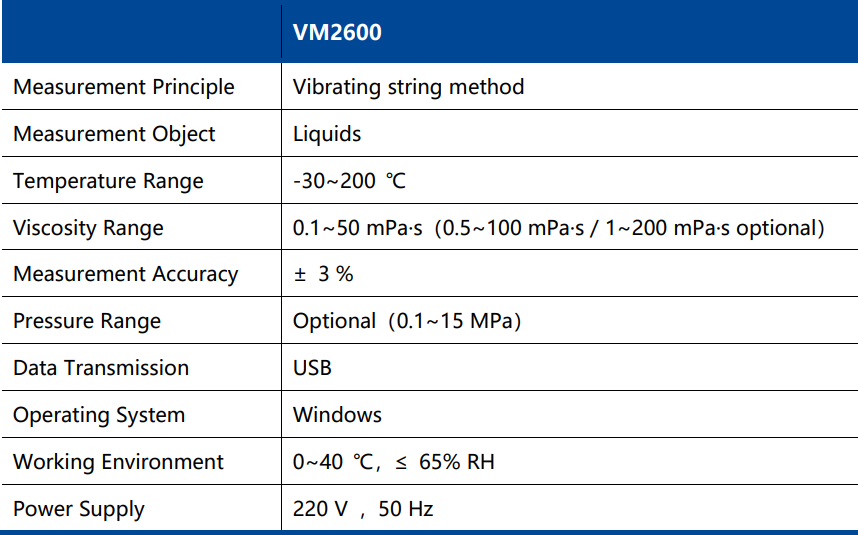

Description Technical Parameter Product Application

Description

The VM2600 high-temperature viscometer employs the vibrating wire test method to obtain viscosity data of the measured liquids. It features high measurement accuracy, good stability, and simple operation, and is widely used in the testing and research of various liquids such as refrigerants, lubricating oils, coolants, and fluorinated liquids. Its sealed chamber is particularly suitable for measuring volatile liquids, and with a configured pressure module, it can simultaneously obtain viscosity-temperature curves and viscosity-pressure curves.

Key Features

l High precision and stability: Adopting the vibrating wire method, it offers high measurement accuracy and good repeatability, free from the influence of surface tension and interfacial tension.

l Wide temperature range: The temperature measurement range is -30~200℃, with support for customization of lower or higher temperatures.

l High-pressure measurement capability: Withstand pressure up to 15 MPa, meeting the needs of viscosity measurement under high-pressure conditions.

l Automated operation: Supports functions such as automatic temperature control, automatic pressurization, and automatic sample injection, featuring simple operation and reduced labor costs.

l Sealed test chamber: Suitable for measuring volatile liquids, ensuring the safety and accuracy of the measurement process.

l Professional software support: Equipped with a concise and intuitive test software, supporting automatic data collection and analysis for users to quickly obtain reliable data.

With a temperature measurement range of -30~200 ℃, it is suitable for viscosity characteristic studies of various liquids under different temperature and pressure conditions.
