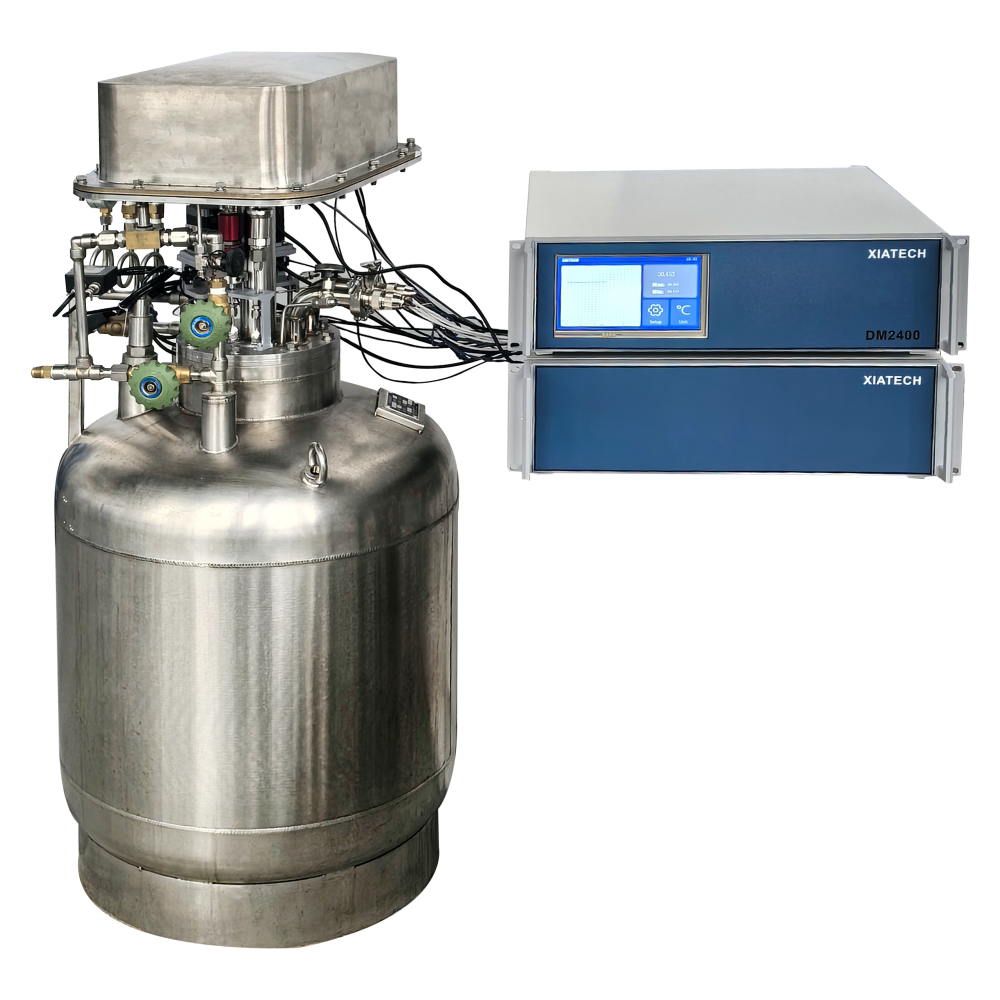

DM2400 Liquid Densimeter

The DM2400 can measure temperatures down to -160°C, assessing both liquid and supercritical fluid densities with accuracy across all phases. Its automated measurement capabilities significantly enhance experimental efficiency.

Product features:: Cryogenic Testing: -160°C, customizable for lower temperatures; Wide pressure range: 0~15 MPa, scalable on request; Fully automated: Controls & measures, records & analyzes

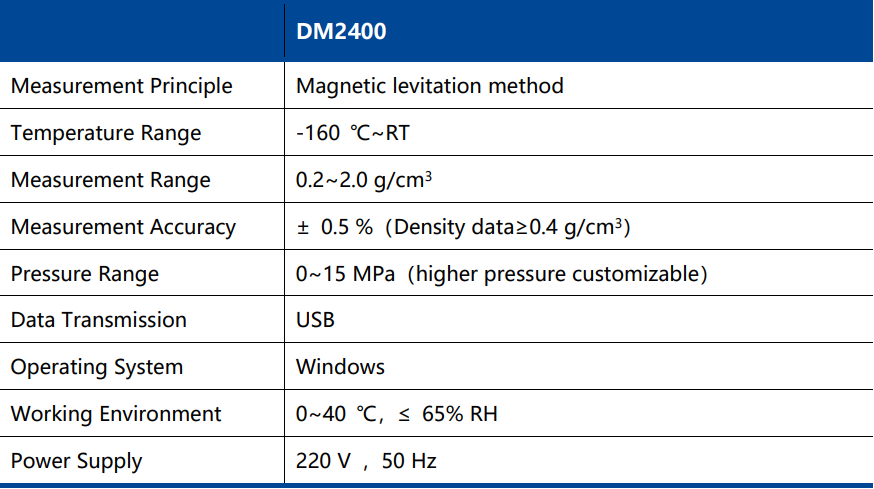

Description Technical Parameter Product Application

Description

The DM2400 Cryogenic Liquid Densimeter, developed using buoyancy principles and magnetic levitation technology, offers high measurement precision, a wide temperature range, broad pressure capabilities, and automated operation. It isolates measurement components from the sample fluid with magnetic coupling, suitable for testing substances like nitrogen and R290 at temperatures from -160°C to ambient. Accuracy exceeds ±0.5%, ensuring reliable data, ideal for low-temperature fluid density measurements.

Key Features

l Accuracy: < ±0.5 % across the entire temperature range

l Cryogenic Testing: Down to -160°C, customizable for lower temperatures

l Pressure range: 0~15 MPa (scalable)

l Overpressure Protection: Prevents instrument damage from rapid pressure increases due to heating

l Automated Testing: temperature/pressure control, data logging and analysis
